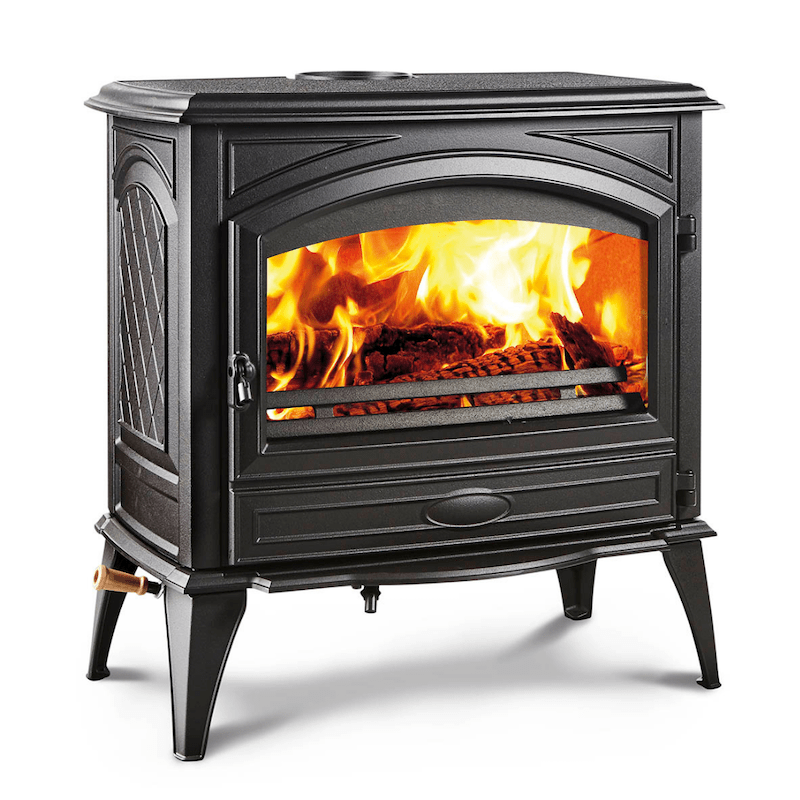

A New and Unique Cast Iron Free Stand Wood Fireplace
The Lynwood W76 is a welcome addition for wood burners everywhere, and is what a wood stove should be: efficient, low emissions, and provides great flames with a maximum viewing area.Versatile, the Lynwood W76 wood stove adapts to any room and will create a cozy atmosphere in any space. EPA 2020 certified, the Lynwood W76 wood burning stove brings warmth without compromising on air quality.
Product Dimensions
- Weight: 500 lbs
- Height: 32 5/8"
- Width: 30 3/4"
- Depth: 22 5/8"
Features
- 2020 EPA Compliant
- 78% Maximum Efficiency
- 13,784 to 57,674 BTU/hr
- Heats up to 2000 ft²
- Maximum Log Size - 21"
- Massive Glass for Fire Viewing
- Manufactured in Belgium
Specs
- Type: Solid Fuel Room Heater
- Type of Combustion: Non-catalytic
- Fuel Type: Dry Cordwood (15% moisture)
- Main Material: Cast Iron
- Firebox Isolation: Vermiculite
- Flue Exit: 6" (150mm) Back to Top Connector
- Recommended Heating Area: 450 to 2,000 ft.2 (43 to 185 m²)
- Nominal Firebox Volume: 1.55 ft.3 (0.044 m3)
- Maximum Burn Time: 14 hours
- Maximum Heat Output (dry cordwood): 57,000 BTU/hr (16.91 kW)
- Overall Heat Output Rate (min. to max.): 13,784 BTU/h to 57,684 BTU/h
- (4.04 kW to 16.91 kW)
- Average Overall Efficiency: 71% (HHV) 4 76% (LHV)
- Optimum Efficiency: 78%
- Average Particulate Emissions Rate: 1.81 g/h (EPA/CSA B415.1-10)
- Average CO: 120 g/h
Accessories:
Mandatory to complete the unit: Reduce Clearance Heat Shield
NOTE: You will need to supply the appropriate chimney pipe and components to complete the installation.
Watch this video on How To Light the Lynwood W76
Lynwood W-76 Specification Sheet
Lynwood W-76 Installation Manual
