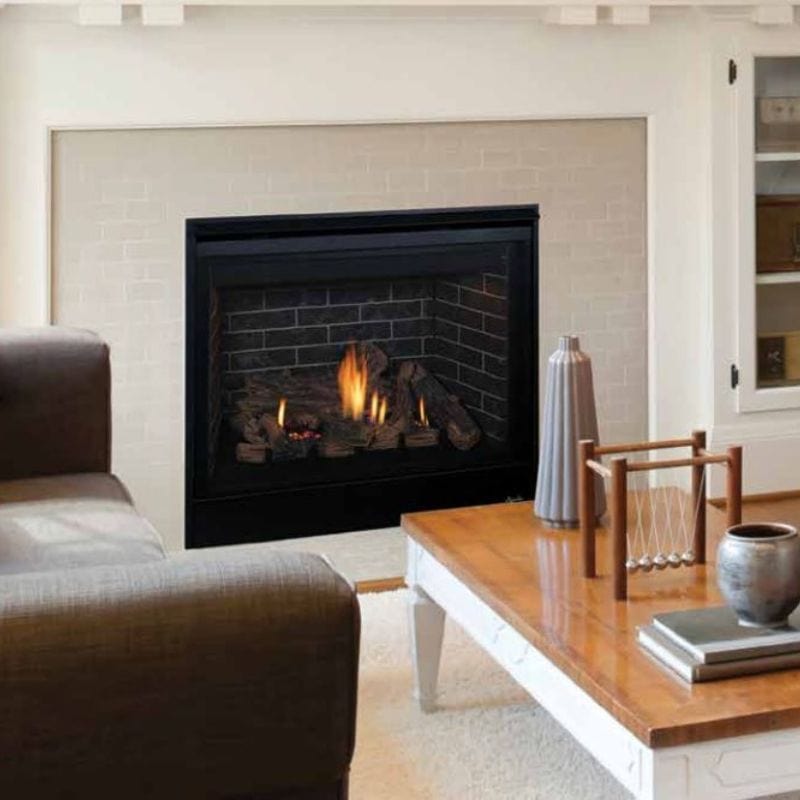

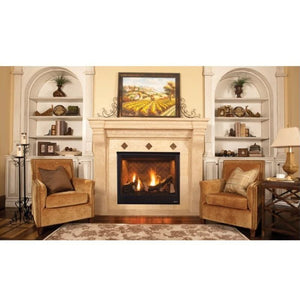

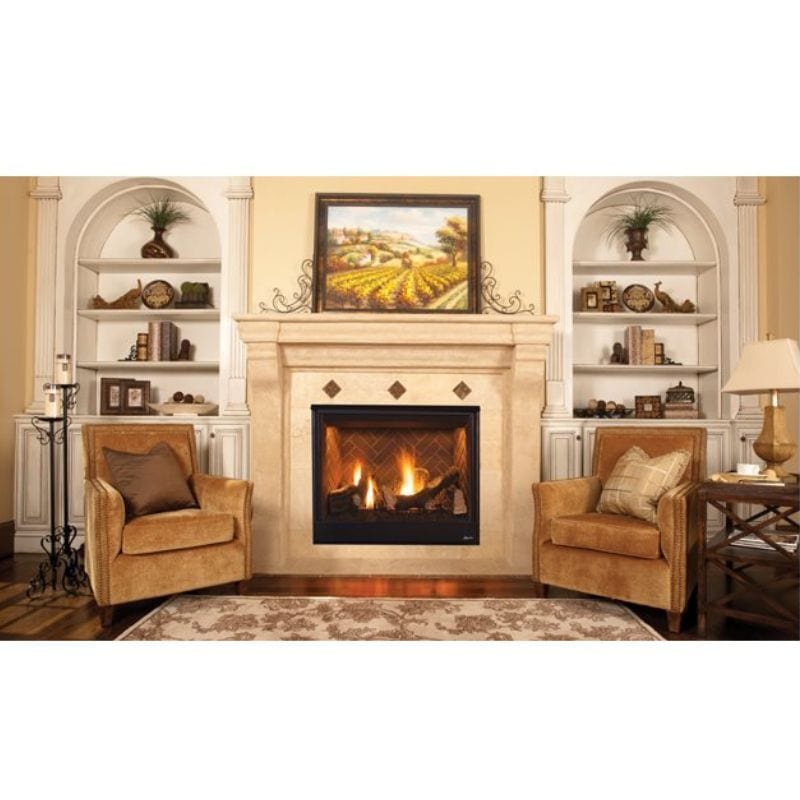

Direct-Vent Gas Fireplaces DRT3500
From its stunning, unobstructed view, to the high-efficiency heating that only comes from advanced engineering, the DRT3500 Pro Series direct-vent gas fireplace offers the ultimate in style and performance.
Standard features, like ceramic glass and a built-in blower, keep living areas warm and inviting, while optional accessories bring added style to any room. As versatile as it is efficient, the DRT3500 Pro Series is the choice for affordable comfort without compromise.
Aesthetics
- Select from 3 sizes - 35", 40" and 45" - to accommodate the size of your room and heating needs.
- Mid-size 17" depth saves installed floor space
- Combination top/rear flue configuration
- Electronic Ignition with seamless battery backup and provides continued operation in the event of a power outage (IPI/CPI switch standard)
- Outstanding heating efficiency for increased comfort and lower operating costs
- Ceramic glass for optimum heat transfer and a protective screen*
- Beautifully crafted high-definition log set
- Interior selections consist of black porcelain and a variety of ceramic fiber liners (required)
- Mood-enhancing interior illumination with six distinctive settings
- Factory-installed blower with six-speed settings to fine-tune your heating needs
- Full-function remote control included (IPI/CPI, thermostat, flame heat, blower, lighting)
- Durable textured powder coat finish
- 20-Year Limited Warranty
Comfort
- Heat-circulating design increases warm air distribution for exceptional supplemental heat.
- Standard built-in blower kit enables higher efficiency and heat delivery to the living space.
- Ceramic glass provides more radiant heat than standard tempered glass.
Ease of Operation
- Full-function remote simplifies operation.
- Energy saving intermittent electronic pilot ignition system reduces gas usage and provides reliable operation.
- Standard high/low flame control allows you to control the ambiance in the room.
- Uninterrupted operation even during a power outage.
Design Versatility
- Combo (top/rear) venting for maximum installation flexibility.
- Approved for use in any room including bedrooms.
- Select from a variety of required liners for a more customized look.
- Natural gas and propane models give you your choice of heating fuel.
All applicable models comply with ANSI Z21.50/88 barrier requirements.
| Model |
DRT3535 |
DRT3540 |
DRT3545 |
| Venting Type |
Direct Vent |
Direct Vent |
Direct Vent |
| Framing Width |
35-7/8" |
40-7/8" |
45-7/8" |
| Framing Height |
36-1/4" |
41-1/4" |
41-1/4" |
| Framing Depth |
18-1/2" |
18-1/2" |
18-1/2" |
| BTU (LP/NG) |
NG: 17,000-26,000
LP: 18,000-23,000 |
NG: 23,000-33,000
LP: 20,000-27,000 |
NG: 24,000-35,000
LP: 23,000-30,000 |
| Style |
Traditional |
Traditional |
Traditional |
| View Style |
Front View |
Front View |
Front View |
| Controls |
Remote Control |
Remote Control |
Remote Control |
| Rating |
Z21.88 |
ANSI Z21.88 |
ANSI Z21.88 |
| Warranty |
20 Year Limited Warranty |
20 Year Limited Warranty |
20 Year Limited Warranty |
Required Accessories:
Optional Accessories
‣ Decorative Face Surrounds
Recommended Accessories
- Glowing Embers
- Touch up paint
DRT3500
Specification Guide
DRT3500 Installation Manual
