Empire Vail Traditional Vent-Free Fireplaces 24"

Vail Traditional Vent-Free Fireplaces 24"

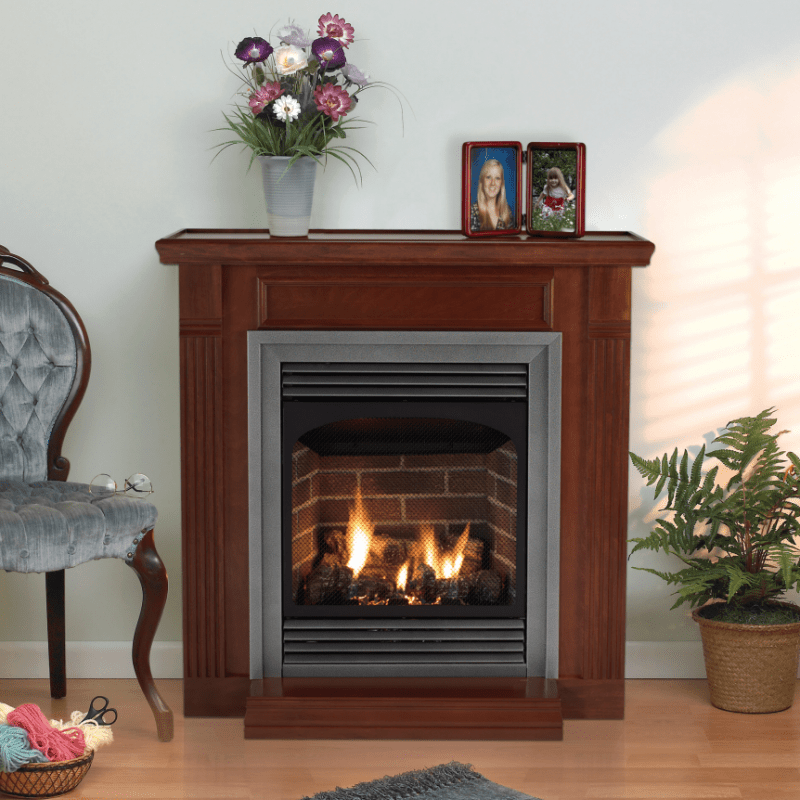

The Vail 24 delivers the beauty of hand-painted ceramic fiber logs and natural flickering flames to dens, halls, and even bedrooms.

Vail 24 Fireplaces are rated at 20,000 Btu – enough heat to keep a family room cozy and warm. Special 10,000 Btu models are available in Millivolt and Intermittent Pilot for bedroom installations, where allowed by local codes.

The Vail 24 fireplace includes matte black louvers and frame.  Available accessories include louvers and metal frames (in hammered pewter), blowers, brick liners, remo­te controls, and Standard Cabinet and Corner Mantels (in cherry, dark oak, oak, unfinished hardwood, unfinished oak, and white).

Fireplace Dimensions

Framing:

• Width: 23 1/4"
• Depth: 11 1/4"
• Height: 26 3/4"

Actual Dimensions:

• Width: 22 5/8"
• Depth: 11"
• Height: 26"

Features

• Weight: 51 lbs.
• 20,000 BTU
• Ignition System: Intermittent Pilot, Millivolt

This Unit Includes:

✓ Hood, Outer Frame, and Louvers in Matte Black
✓ Ceramic Fiber Log Set

Recommended Accessories

• Fireplace Liners:




Traditional Brick Ceramic Fiber Liner
(EHL24)


Aged Brick Ceramic Fiber Liner
(VPP1A22)

• Fireplace Accessories



Variable Speed Automatic Blower (FBB6)

Flex Gas Line (GF24)

Platinum Embers (PE20)

• Decorative Accessories



Hammered Pewter 3-pc Steel Frame (VFF24HP)

Hammered Pewter Slat Louvers (VPL24HP)

• Control Options



Battery Operated On/Off Remote Control (FRBC)	Battery Operated Thermostat Remote Control (FRBTC2)	Battery Operated Thermostat Remote Control (FREC)	Battery Operated Programmable Thermostat Touchscreen Remote Control (FRBTPS)
On/Off Wall Switch (FWS1)	Wall Thermostat (TMV)	Wireless Wall Thermostat (TRW)

• Cabinet Mantels and Corner Cabinet Mantels with Bases - Cabinet Mantels require a 3-piece frame (a black frame is included with the fireplace).


• Choose a mantel finish:

Cherry
(EMF22C / EMC22C)

Dark Oak
(EMF22DO / EMC22DO)

Oak
(EMF22O / EMC22O)

Unfinished Hardwood
(EMF22UH / EMC22UH)

White
(EMF22W / EMC22W)
