Empire Tahoe Clean Face Deluxe Direct-Vent Fireplaces 36"

DVCD36FP30N

Gas Type: NG (Natural Gas)
Ignition Type: Millivolt

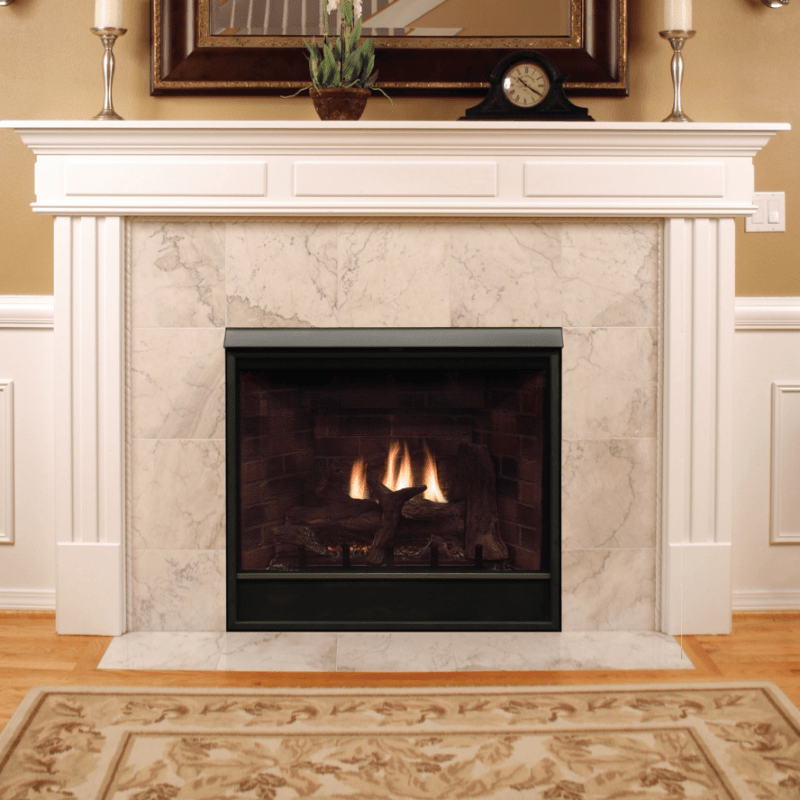

Tahoe Clean Face Deluxe Direct-Vent Fireplaces 36"

Tahoe Clean-Face Deluxe models feature our Contour tube-style burner, designed to complement the hand-painted ceramic fiber log set, and produce a natural dancing flame.

The Clean-Face Deluxe Fireplace comes with a discreet air distribution channel that eliminates the look of louvers, yet still allows you to operate the optional blower.  It features a large heat-resistant, tempered glass window that provides an unobstructed view to the log set.

Choose an optional liner – Aged Brick, Herringbone, Stacked Limestone, or Black Reflective – to customize your fireplace.

Tahoe Clean-Face Deluxe models require 17-3/4, and  use 4 x 6-5/8 venting, making them ideal for applications where wall-cavity space is tight.

Designed for in-wall installation, your Tahoe Clean-Face Direct-Vent fireplace can be finished with tile or other non-combustible material, which conceals the outer edge of the fireplace to provide a true built-in appearance.


PRODUCT DIMENSIONS

Glass Viewing Area:

      • Width: 30 1/2"
      • Height: 20"

Framing:

      • Width: 38 1/4"
      • Depth: 18:
      • Height: 39"

Actual Dimensions:

      • Width: 37 9/16"
      • Depth: 17 3/4"
      • Height: 35 5/8"


TECHNICAL INFORMATION


  • Maximum Heat Output: 18,000 BTU
  • Efficiency Rating:

      • 49.47% A. F. E. U.
      • 44.40% P4

  • Weight: 123 lbs
  • Clearancs:

      • Side Wall: 0"
      • Top Trim: 0"

  • Type of Gas: LP or Natural
  • Iron Pipe Size: 1/2-inch
  • Ignition Systems: Intermittent Pilot or Millivolt
  • Vent Size: 4 x 6 5/8 inch
  • Top or Rear Vent


This Unit Includes:

✓ 6-piece Ceramic Fiber Log Set
✓ Barrier


FIELD-INSTALLED ACCESSORIES

Liners:

      • Aged Brick
      • Black Porcelain
      • Herringbone Brick
      • Stacked Limestone


WARRANTY

10-year limited warranty on combustion chamber; limited lifetime on glass.
All other parts carry a 3-year limited warranty. All Remote Controls carry a 1-year limited warranty.





Empire Tahoe Clean Face Deluxe Direct-Vent Fireplaces 36" Specification Guide

Empire Tahoe Clean Face Deluxe Direct-Vent Fireplaces 36





Empire Tahoe Clean Face Deluxe Direct-Vent Fireplaces 36" Installation Manual

Empire Tahoe Clean Face Deluxe Direct-Vent Fireplaces 36
