Empire Rushmore TruFlame Direct-Vent Fireplaces 36"

Rushmore TruFlame Direct-Vent Fireplaces 36"

The Renegade's TruFlame Technology ensures maximum flames and ember glow with minimum emissions.

An attractive clean-face design integrates the barrier screen flush with the fireplace front – allowing you to install tile, brick, or other non-combustible materials right up to the fireplace opening for a clean, organic installation.  Or choose one of the optional decorative fronts, doors, or frames to tailor your new fireplace with the look that suits your décor.

A variety of liners are available to further customize the Renegade– including Traditional Stone, Cottage Brick, or reflective Black Porcelain. Add the available hand-forged andirons to complete the look.

The Renegade fireplace is available in two sizes– 40-inch or 36-inch.

Fireplace Dimensions

Features

• TruFlame Catalyst Technology
• Dual Burners
• Fine Mesh Barrier Screen
• Non-Combustible Board
• Multi-Function Remote Control Features:
• Thermostat Control
• Front and Rear Burner 6-Step Variable Flame Height
• Independent Rear Burner On/Off (70% Turn Down)
• Accent Lighting On/Off with 6-Step Dimming
• Optional Double Blower On/Off with 6-Speed Settings
• Optional Blower
• Optional Fronts
• Venting:
• 5" x 8" Top Vent Only
• 12" Minimum Vertical Rise before Horizontal Venting (with conventional venting)
• Conventional DV Kits
• Optional Power Venting Kits
• Electronic Variable Valve with Variable Thermostat Remote
• Max/Min Heat Output:
• 40,000/33,000 BTU (LP)
• 40,000/26,000 BTU (Nat)
• Weight: 271 lbs
• Clearances:
• Side Wall: 2"
• Top of Unit: 24"
• Top Framing Edge: 0"
• Type of Gas: LP or Natural
• Iron Pipe Size: 1/2-inch
• Ignition Systems: Multi-Function

This Unit Includes:

✓ Fine Mesh Barrier
✓ Non-Combustible Board
✓ TruFlame Technology: Catalyst allows large flame, extensive ember bed and clean burn
✓ Multi-Function remote to control the:

• Front and rear burner 6-step variable flame height
• Independent Rear burner on/off (70% turn down)
• Accent lighting on/off with 6-step dimming, Optional Double Blower on/off with 6-speed settings

This Unit Requires:

• Liners

Whitewashed Herringbone Ceramic Fiber Brick Liner (DVP36CPWH)

Rustic Ceramic Fiber Brick Liner (DVP36CPMB)

Old World Stone Ceramic Fiber Brick Liner (DVP36CPWS)

Black Porcelain Brick Liner (DVP36CPKR)

• Log Set

Driftwood Ceramic Fiber Log Set (LS36DINF)

Traditional Charred Ceramic Fiber Log Set (LS36TINF)

Birch 10-Piece Burncrete Log Set (LS36CBB)

Decorative Fronts

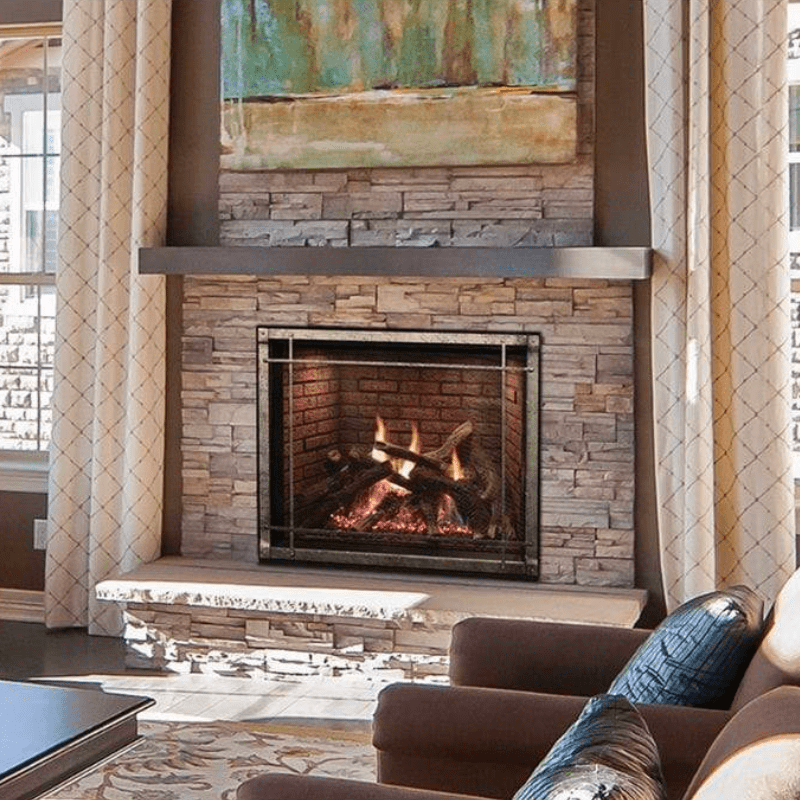

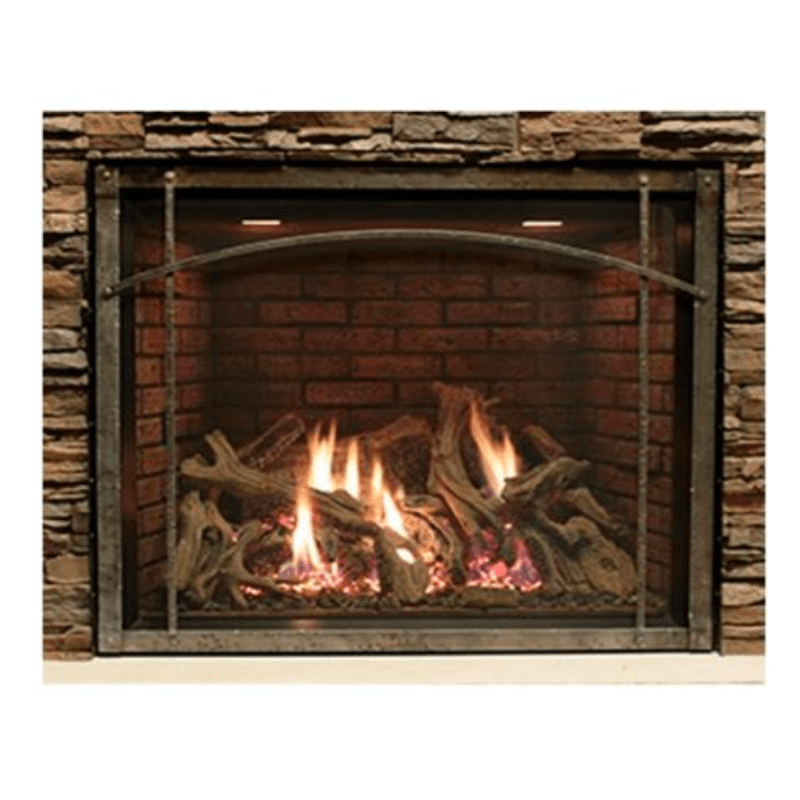

• Forged Iron Front and Insets - can be used alone as frame only or with one of the available forged iron inserts (arched or rectangular).

Forged Iron Frame	Arched Iron Inset	Rectangle Iron Inset
Black Forged Iron Frame (DFF36BL)	Distressed Pewter Forged Iron Frame (DFF36FPD)	Oil-Rubbed Bronze Forged Iron Frame (DFF36BZT)

• Beveled Frames

1.5-inch Textured Black Beveled Frame (DF362BLX)

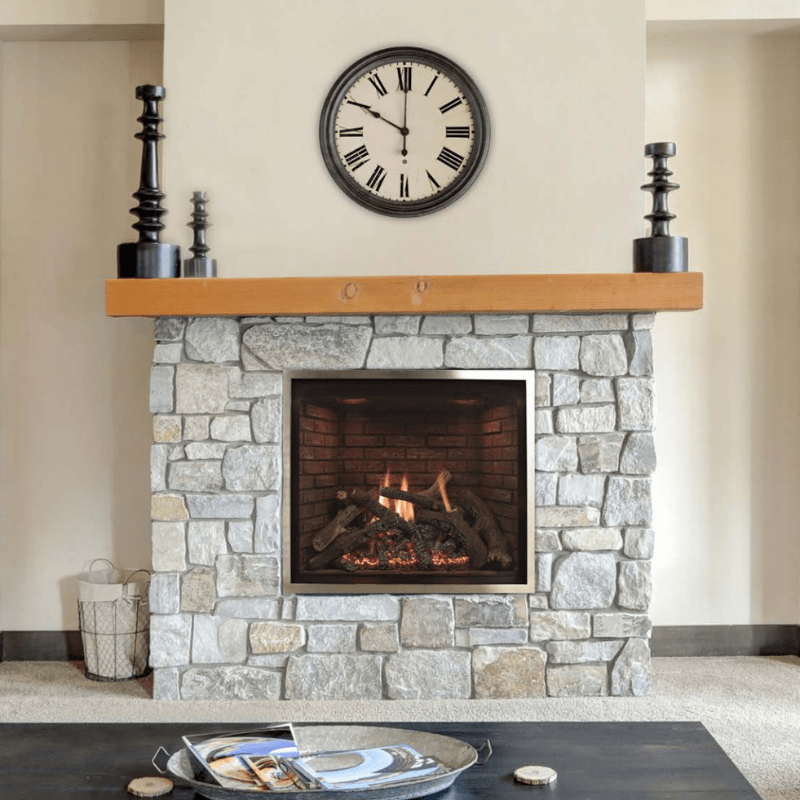

1.5-inch Brushed Nickel Beveled Frame (DF362CNB)

1.5-inch Oil-Rubbed Bronze Beveled Frame (DF362BZT)

Rushmore Series Fireplace Brochure
