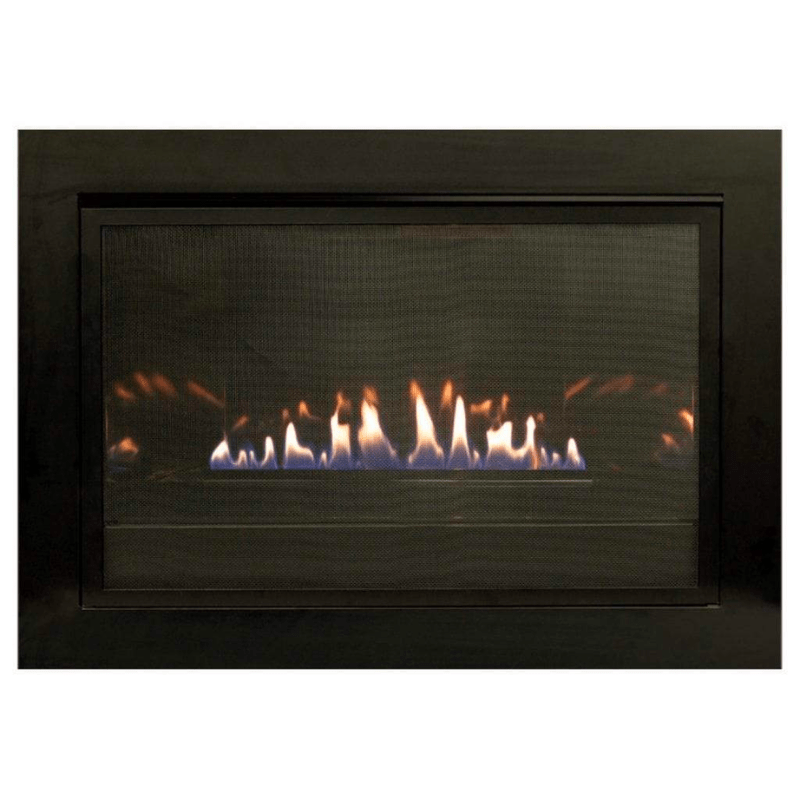

Empire Loft Vent-Free Fireplace Inserts Small

VFLC10IN32N

Ignition Type: Millivolt
Burner Power: 10000 BTUs
Gas Type: NG (Natural Gas)

Empire Loft Vent-Free Fireplace Inserts Small

Awaken your inner artist with a Loft Series Vent-Free Insert – with the contemporary linear burner in a porcelain-lined firebox that reflects the mesmerizing flame to create depth and visual interest from any angle.

White Mountain Hearth offers the Loft Vent-Free Inserts in two sizes (20,000 BTUs and 28,000 BTUs) so you are sure to find one to fit your existing wood-burning fireplace. A 10,000 BTUs model is available for bedroom applications – where allowed by codes.

The Loft Series Vent-Free Insert features a contemporary linear burner in a sleek, black firebox that reflects the flames to create depth and visual interest. A fine barrier mesh screen comes standard with each Loft Vent-Free Insert.

The Loft Insert lights at the flick of a switch to produce consistent, reliable heat, even when electric power fails. Add the convenience of an optional thermostat, wireless wall thermostat, remote control, or thermostat remote control, and enjoy all the comfort of a warm fire without the mess and hassle.


Fireplace Dimensions

Actual Dimensions:
  • Width: 29 1/4"
  • Depth: 13 9/16"
  • Height: 19 3/4"
Opening Dimensions:
  • Width: 25 7/8"
  • Height: 14 5/8"

Features

  • Contemporary Linear Burner
  • Mesh Barrier Screen
  • Black Reflective Liner
  • Optional Blower
  • Installs as a Vent Free Insert inside an existing fireplace or as a Vent Free Fireplace
  • Millivolt Control Valve with On/Off Switch or Electronic Control Valve with On/Off Switch
  • Remote Ready
  • Maximum heat output:
    • 10,000 BTU for VFLC10IN32 (LP, Nat)
    • 20,000 BTU for VFLC20IN32/72 (LP, NAT)
  • Weight: 50 lbs.
  • Type of Gas: LP or Natural
  • Ignition Systems: Intermittent Pilot or Millivolt


This Unit Includes:

✓ Barrier
✓ Black Reflective Liner


This Unit Requires:

  • Fireplace Surround


  • 3-Sided Matte Black 1-Piece Metal Surround
    (DS20433BL)
    34" W x 21 1/2" H x 1" D
    Not for use with SH1BL Shroud


    3-Sided Matte Black 1-Piece Metal Surround
    (DS20763BL)
    40" W x 24 1/2" H x 1" D
    SH1BL Shroud helps conceal larger fireplace opening

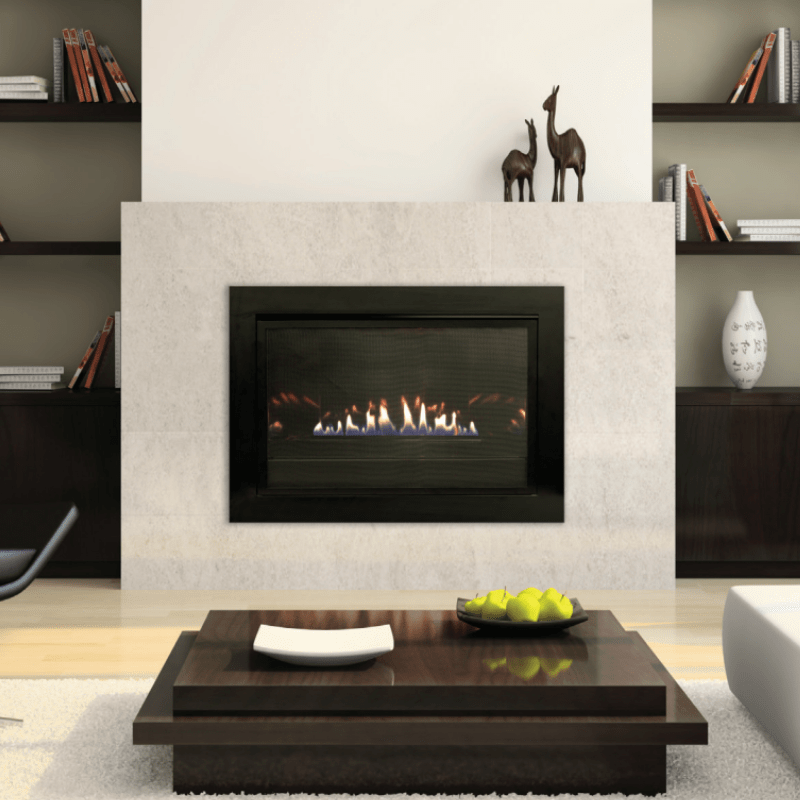

    4-Sided Matte Black 1-Piece Metal Surround
    (DS20334BL)
    34" W x 22 7/8" H x 1/8" D
    SH1BL Shroud helps conceal larger fireplace opening


Other Recommended Accessories

  • Decorative Crushed Glass (Uses about 1.15 sq.ft. of Clear, Copper, or Bronze on the burner to allow lighting to show. Other colors as an accent only)
    • Black Polished Crushed Glass (DG1BKP)
    • Blue Clear Crushed Glass (DG1BUC)
    • Clear Frost Crushed Glass (DG1CLF)
    • Copper Reflective Crushed Glass (DG1BCR)
    • Bronze Reflective Crushed Glass (DG1BZR)

  • Control Options

  • Battery Operated On/Off Remote Control
    (FRBC)

    Battery Operated Thermostat Remote Control
    (FRBTC2)

    Battery Operated Thermostat Remote Control
    (FREC)

    Battery Operated Programmable Thermostat
    Touchscreen Remote Control

    (FRBTPS)

    On/Off Wall Switch
    (FWS1)

    Wall Thermostat
    (TMV)

    Wireless Wall Thermostat
    (TRW)




Empire Loft Series Vent-Free Fireplaces
Specification Guide
Empire Loft Series Vent-Free Fireplaces VFL20 Specification Guide
Empire Loft Series Vent-Free
Fireplaces Installation Manual
Empire Loft Series Vent-Free Fireplaces VFL20 Installation Manual


Installation Instructions: Fireplace Surround
Installation Instructions: Automatic Blower

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

QUESTIONS & ANSWERS

Ask a Question
  • I am interested in the VFL20. I intend to install the unit. Is this a complete unit, everything I'll need. If there are accessories that are not included, please ID them with costs. I've seen things like facia, logs or glass, remote controls units, blowers. If I'm not asking the right question, please educate me.

    This unit comes with everything you will need but you have the option to modify the unit by clicking on the drop-down arrow on each of the choices above. You also have the option to add or not include some accessories under 'Recommended Accessories'.
