Empire Boulevard Linear Direct-Vent Fireplaces Contemporary 60"

DVLL60BP90N

Gas Type: NG (Natural Gas)


Quick Specs

🔥 Fuel Type:  Gas

📦 Weight: 360lbs

🚚 Typically leaves warehouse in 6-8 Weeks

Boulevard Linear Direct-Vent Fireplaces Contemporary 60"

Tailor the Boulevard fireplace to suit your taste, starting with an elegant porcelain black liner that goes well with any décor. Or opt for an industrial-chic look with the Ridgeback liner – a one-piece corrugated metal liner finished in distressed bronze.

The fully recessed burner fills the fireplace with lively flames– up to 46,000/31,000 Btu (Nat)/42,500/32,500 Btu (LP) for the DVLL60.

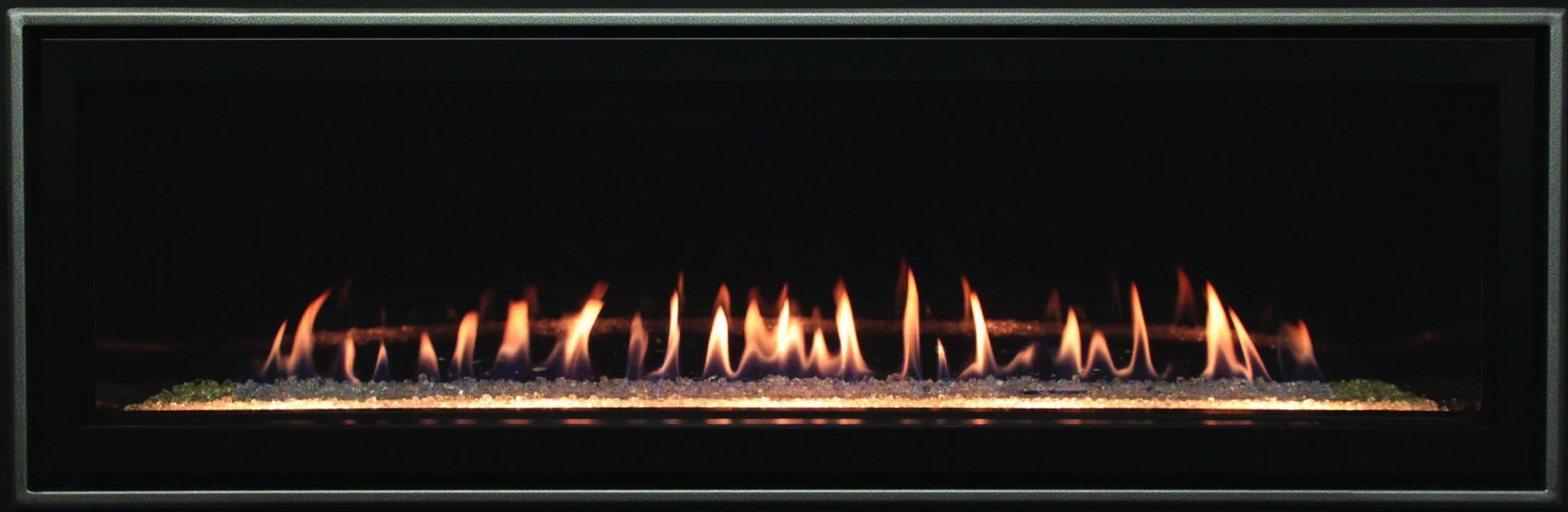

Acres of the crushed glass cover the fireplace floor (available in a variety of colors), while the halogen lighting lets you set the perfect mood – whether the fireplace is burning or not. Choose our Copper Reflective or Bronze Reflective crushed glass– or Clear Frost. These translucent shades of crushed glass allow the under-floor white light system to shine through, but you can accent with other glass colors including our drops and droplets.

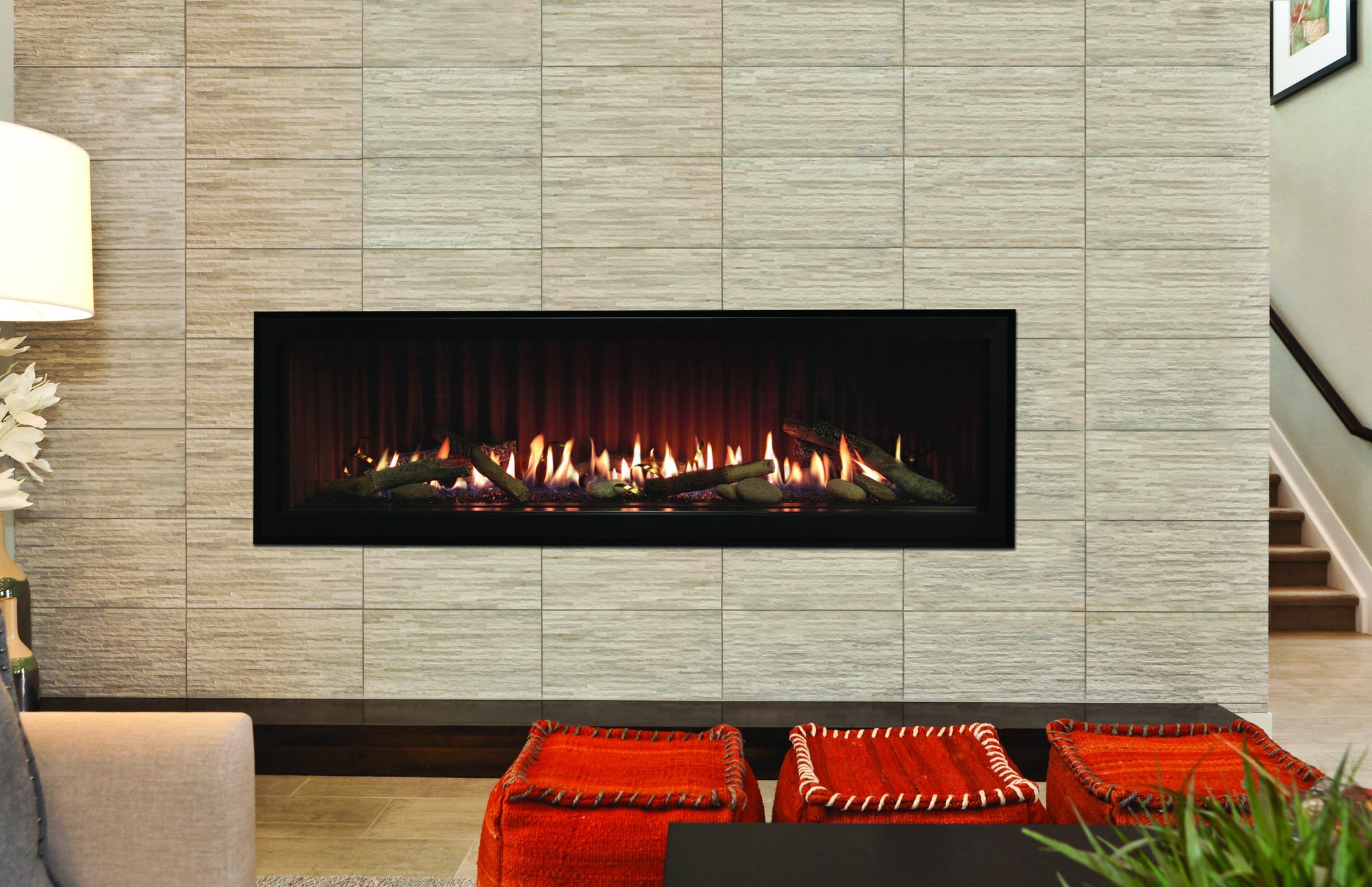

The available Rustic Log Set includes a unique assortment of ceramic fiber logs and stones, plus coiled slivers of stainless steel that react to the light and flames to bring your fireplace to life.


Fireplace Dimensions



Product Dimensions:
  • Width: 81 1/16"
  • Depth: 19 7/16"
  • Height: 49 16/16"
Framing Dimensions:
  • Width: 79 5/8"
  • Depth: 21 1/2"
  • Height: 49 3/8"
Glass Viewing Dimensions:
  • Width: 60"
  • Height: 14 13/16"


Features

  • Multi-Function Remote to control burner, accent lighting, optional blower
  • Ceramic Glass
  • Dimmer Light below the floor
  • Barrier Screen
  • Noncombustible Board for top/sides
  • BTU Max/Min Heat Output: 42,500/32,500 BTU (LP) & 46,000/31,000 BTU (Nat)
  • Weight: 360 lbs
  • Clearances: Side Wall: 3", Top Stand-Off Bracket: 0", Top Framing Edge: 13"
  • Type of Gas: LP or Natural
  • Iron Pipe Size: 1/2-inch
  • Ignition Systems: Multi-Function
  • Vent Size: 5 x 8 inch Top Vent Only


This Unit Includes:

✓ Multi-Function Remote
✓ Ceramic Glass
✓ Dimmer Light below Floor
✓ Barrier Screen
✓ Noncombustible Board for Tops/Sides


This Unit Requires:

  • Decorative Crushed Glass (7 boxes required, additional decorative media may be added to cover fireplace floor)
    • Black Polished Crushed Glass (DG1BKP)
    • Blue Clear Crushed Glass (DG1BUC)
    • Clear Frost Crushed Glass (DG1CLF)
    • Copper Reflective Crushed Glass (DG1BCR)
    • Bronze Reflective Crushed Glass (DG1BZR)
  • Liner
    • Black Porcelain (DVP60LKR)
    • Bronze Ridgebrack (DVP60LPZ)


Other Recommended Accessories

  • Log Set
    • 7 Rustic Logs, 11 Rocks, 5 SS Coils (LSM1THF))
  • Decorative Front

  • 1.5-inch Textured Black
    Beveled Frame

    (DF602LBLX)

    1.5-inch Brushed Nickel
    Beveled Frame

    (DF602NB)

    1.5-inch Oil-Rubbed
    Bronze Beveled Frame

    (DF602LBZT)

    Black Forged Iron Frame
    (DFF60LBL)

    Distressed Pewter
    Forged Iron Frame

    (DFF60FPD)

    Oil-Rubbed Bronze
    Forged Iron Frame

    (DFF60LBZT)

    1.0-inch Matte Black
    Beveled Trim Kit

    (DF60BL)

    1.0-inch Hammered Pewter
    Adjustable Beveled Trim Kit

    (DF60HP)
  • Decorative Media
    • Glacier Ice Glass Drops (DG1GC), Covers approximately 1 sq. ft.
    • Decorative Rock Assortment (DR1FMA), Covers approximately 1 sq. ft.
    • Decorative Pebble Assortment (DRFPA), Covers approximately 1/2 sq. ft.





WARRANTY

10-year Limited Warranty on Combustion Chamber, Limited Lifetime on Glass. All other parts carry a three-year limited warranty. All remote controls and lighting systems carry a one-year limited warranty.



BROCHURE

Empire Boulevard Linear Direct-Vent
Fireplaces Contemporary 60" Specifications Guide


Empire Boulevard Linear Direct-Vent Fireplaces Contemporary 60 Specs Sheet

Empire Boulevard Linear Direct-Vent
Fireplaces Contemporary 60" Installation Manual


Empire Boulevard Linear Direct-Vent Fireplaces Contemporary 60 Insatllation Manual
Homeower's Manual
Empire Boulevard Linear Direct-Vent Fireplaces Contemporary 60 Homeowners Manual

Unpacking
Instructions:

Unpacking Instructions

Beveled Frame Front
Installation Manual:

Beveled Frame Front Installation Manual

Forged Iron Frame Front
Installation Manual:

Forged Iron Frame Front Installation Manual

Beveled Trim Kit
Installation Manual:

Beveled Trim Kit Installation Manual

Decorative Front
Glass Barier Kit:

Beveled Trim Kit Installation Manual
