Empire Boulevard Linear Direct-Vent Fireplaces See-Through 48"

DVLL48SP90N

Gas Type: NG (Natural Gas)

Boulevard Linear Direct-Vent Fireplaces See-Through 48"

Boulevard Linear Fireplaces provide the perfect scale for today’s large spaces – from a spacious family room to a hotel lobby to an upscale restaurant

The new Boulevard 48 Direct-Vent See-Through fireplace features a true 48-inch viewing area, a fully recessed burner, and white LED underfloor lighting. This system installs in an interior wall to brighten adjoining rooms – or in an exterior wall with the optional stainless steel outdoor kit for a beautiful view, indoors and out. Customize the look with liners, logs, fronts, and decorative glass.

Tailor the Boulevard fireplace to suit your taste, starting with an elegant porcelain black liner that goes well with any décor. Or opt for an industrial chic look with the Ridgeback liner – a one-piece corrugated metal liner finished in distressed bronze. For the perfect ambiance indoors and out, choose the Boulevard 48 see-through fireplace with indoor/outdoor kit, and customize it with a sleek porcelain black liner or rugged Ledgestone liner.

The fully recessed burner fills the fireplace with lively flames– up to 37,000/25,000 Btu (Nat)/34,000/27,000 Btu (LP) for the DVLL48SP. Acres of the crushed glass cover the fireplace floor (available in a variety of colors), while the halogen lighting lets you set the perfect mood – whether the fireplace is burning or not. Choose our Copper Reflective or Bronze Reflective crushed glass– or Clear Frost. These translucent shades of crushed glass allow the under-floor white light system to shine through, but you can accent it with other glass colors including our drops and droplets.

The available Rustic Log Set includes a unique assortment of ceramic fiber logs and stones, plus coiled slivers of stainless steel that react to the light and flames to bring your fireplace to life.


Fireplace Dimensions



Product Dimensions:
  • Width: 61"
  • Depth: 20 9/16"
  • Height: 34 3/8"
Framing Dimensions:
  • Width: 68" (indoor) | 68" (outdoor)
  • Depth: 19 1/2" (indoor) | 21 1/4" (outdoor)
  • Height: 51 3/4" (indoor) | 51 3/4" (outdoor)
  • Glass Viewing Dimensions:
    • Width: 48"
    • Height: 12 13/16"

    This Fireplace Installs as:

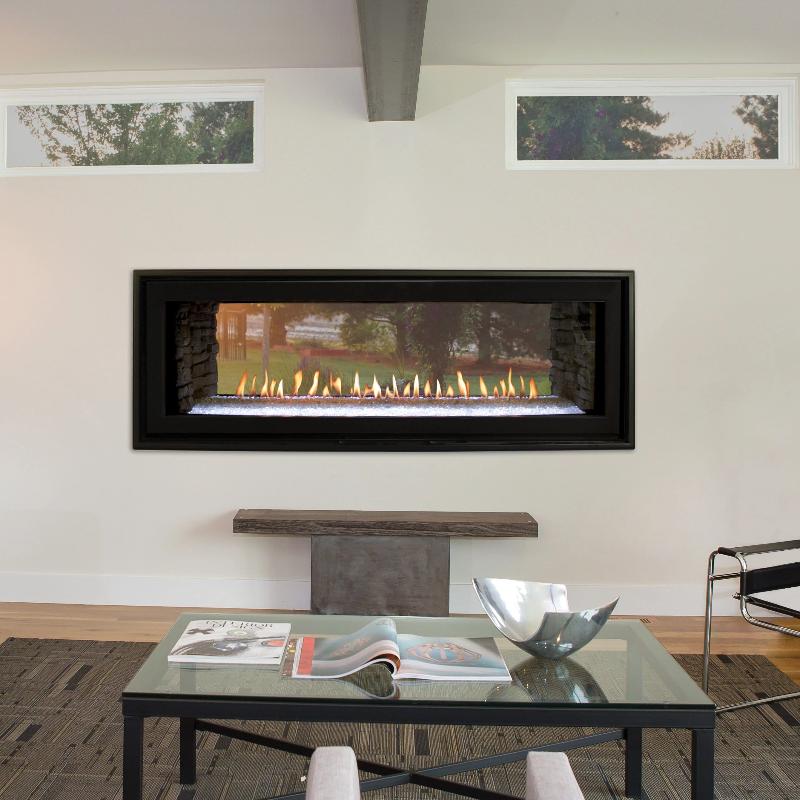

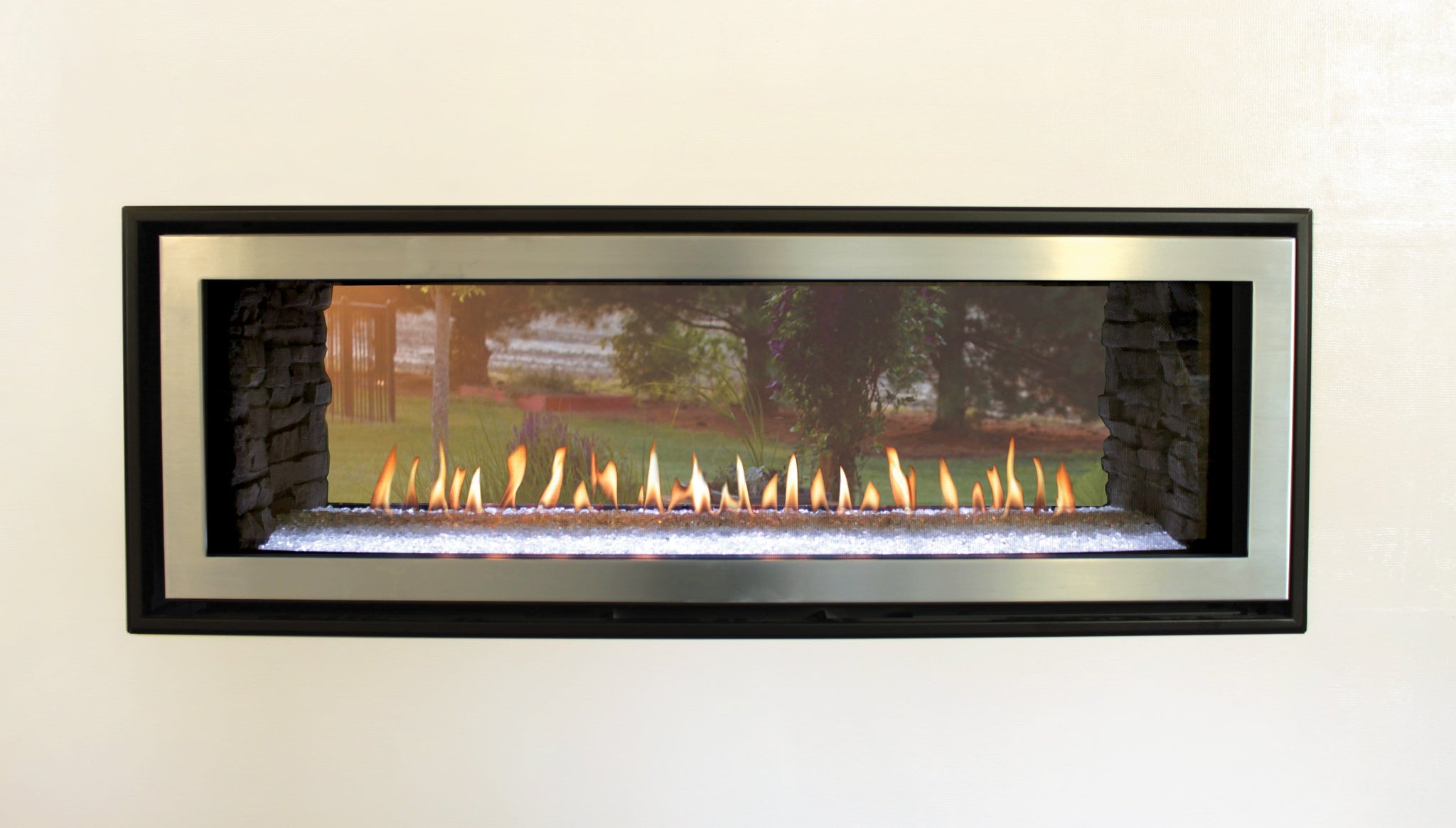

    Conventional See-Through on an interior wall. Requires finishing to the fireplace opening on both sides with plaster/tile/stone/brick - with or without decorative frames.

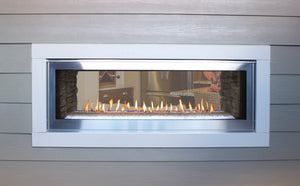

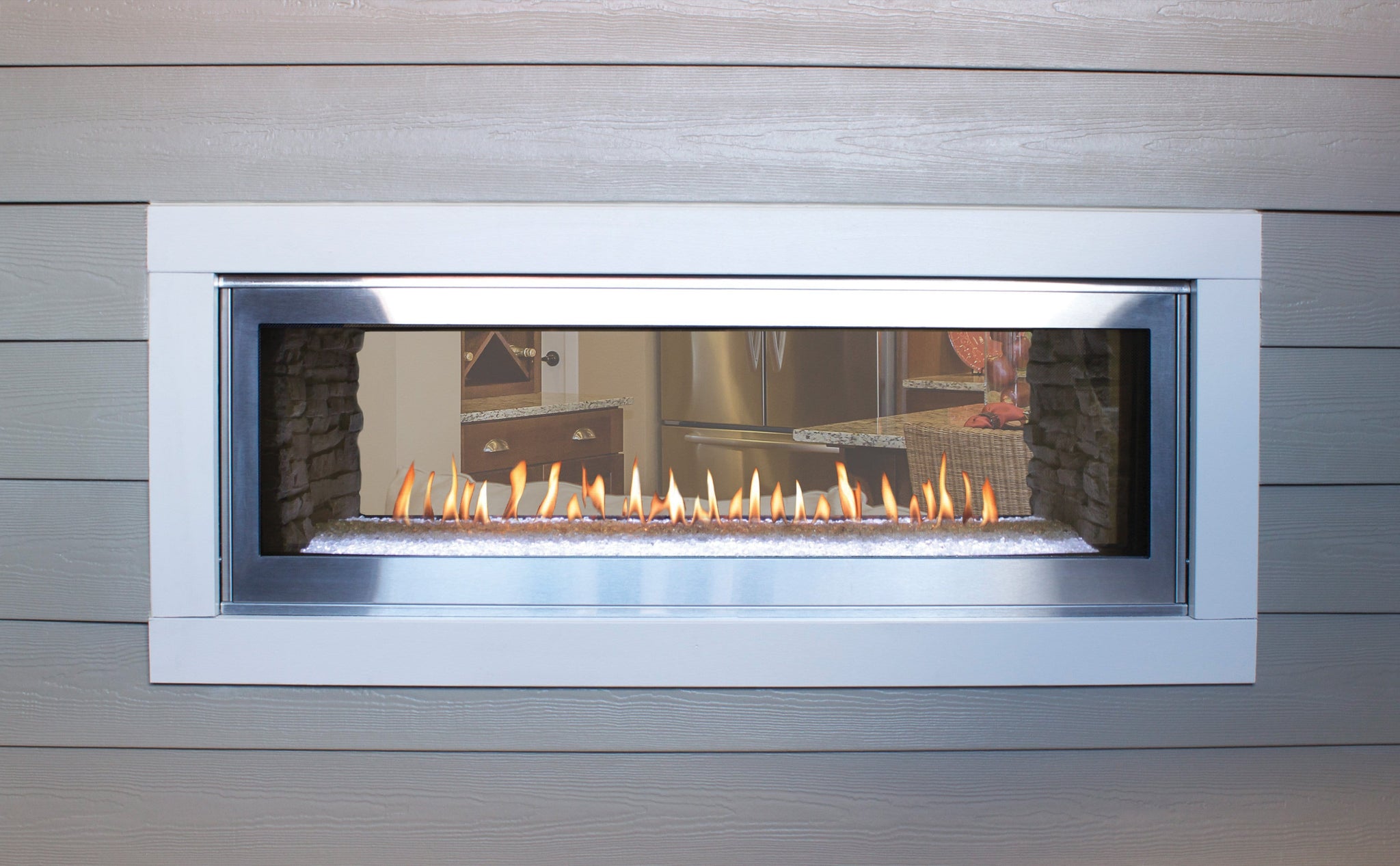

    Indoor/Outdoor See-Through on an exterior wall. Requires finishing to the fireplace opening on the interior side with plaster/tile/stone/brick - with or without a decorative frame. The exterior wall requires special framing and the Exterior Decorative Front (DFED489SS) - see manuals for the fireplace and frame kit.


    Features

    • Multi-Function Remote to control burner and white LED accent lighting
    • Ceramic Glass
    • Barrier Screen
    • Non-Combustible Board for Top (X2)
    • Battery Back-Up
    • Optional Rustic Log Set
    • Optional Decorative Fronts
    • Ceramic Glass: 13" H x 48" W
    • Electronic Variable Valve with Variable Thermostat Remote
    • BTU Max / Min: 37,000 / 25,000
    • 12" Minimum Vertical Rise before Horizontal Venting
    • Weight: 434 lbs
    • Type of Gas: LP or Natural
    • Iron Pipe Size: 1/2-inch
    • Ignition System: Multi-Function System
    • Venting: 5 x 8" Top Vent Only


    This Unit Includes:

    ✓ Multi-Function Remote to Control Burner and White LED Accent Lighting
    ✓ Ceramic Glass
    ✓ Barrier Screen
    ✓ Noncombustible Board for Top (x2)


    This Unit Requires:

    • Decorative Crushed Glass (Req 8 sq.ft. of Clear, Copper, or Bronze (to allow lighting to show). Other colors as accent only)
      • Black Polished Crushed Glass (DG1BKP)
      • Blue Clear Crushed Glass (DG1BUC)
      • Clear Frost Crushed Glass (DG1CLF)
      • Copper Reflective Crushed Glass (DG1BCR)
      • Bronze Reflective Crushed Glass (DG1BZR)
    • Liner
      • Black Porcelain (DVP48SLKR)
      • Ledge Stone Ceramic Fiber (DVP48SLG)


    Other Recommended Accessories

    • Log Set
      • 7 Rustic Logs, 11 Rocks, 5 SS Coils (LSM1THF))
    • Decorative Front

    • 1.5-inch Textured Black
      Beveled Frame

      (DF482LBLX)

      1.5-inch Brushed Nickel
      Beveled Frame

      (DF482NB)

      1.5-inch Oil-Rubbed
      Bronze Beveled Frame

      (DF482LBZT)

      Black Forged Iron Frame
      (DFF48LBL)

      Distressed Pewter
      Forged Iron Frame

      (DFF48FPD)

      Oil-Rubbed Bronze
      Forged Iron Frame

      (DFF48LBZT)

      1.0-inch Matte Black
      Beveled Trim Kit

      (DF48BL)

      1.0-inch Hammered Pewter
      Adjustable Beveled Trim Kit

      (DF48HP)
    • Exterior Frame
      • Stainless Steel Frame for Exterior Installation (DFED489SS)
      • Decorative Media
        • Glacier Ice Glass Drops (DG1GC), Covers approximately 1 sq. ft.
        • Decorative Rock Assortment (DR1FMA), Covers approximately 1 sq. ft.
        • Decorative Pebble Assortment (DRFPA), Covers approximately 1/2 sq. ft.



      WARRANTY

      10-year Limited Warranty on Combustion Chamber, Limited Lifetime on Glass. All other parts carry a three-year limited warranty. All remote controls and lighting systems carry a one-year limited warranty.



      BROCHURE

      Empire Boulevard Linear Direct-Vent
      Fireplaces See-Through 48" Specifications Guide


      Empire Boulevard Linear Direct-Vent Fireplaces See-Through 48 Specs Sheet

      Empire Boulevard Linear Direct-Vent
      Fireplaces See-Through 48" Installation Manual

      Empire Boulevard Linear Direct-Vent Fireplaces See-Through 48 Insatllation Manual

      Homeower's Manual
      Empire Boulevard Linear Direct-Vent Fireplaces See-Through 48 Homeowners Manual

      Beveled Frame Front
      Installation Manual:

      Beveled Frame Front Installation Manual

      Forged Iron Frame Front
      Installation Manual:

      Forged Iron Frame Front Installation Manual

      Light Kit
      Installation Manual:

      LK9-1 Light Kit Installation Manual

      Exterior Decorative Frame
      Installation Manual:

      Exterior Decorative Frame Installation Manual
