TRU-VIEW XL Deep Three Sided Glass Electric Fireplace
Infused with the timeless beauty of fireplaces, the Tru View XL Deep Smart brings it to the modern age. The stylish TRU View XL 3-sided electric fireplace is truly innovative! The stunning flame presentation and unique media options can now be viewed from almost any angle through 3 sides of the glass viewing area.
This visually stunning fireplace is available in 4 sizes, 40”, 50”, 60”, and 72”, and will turn heads while adding warmth, ambiance, and style to any room.
Designed for finishing materials are to be built flush to the lip for a clean face finish. Built-In only. No trim or surround included.
The TRU-VIEW XL Deep Series works beautifully as a corner electric fireplace! Perfect for any space, inside or out, including bathrooms.
The Tru View XL Deep Smart series includes your choice of Design Media Log Sets– 15 Piece Driftwood, 14 Piece Rustic. 15 Piece Birch, 16 Piece Split Log and the Ice Media Kit
Fireplace Dimensions
Weight: 90.54 lbs Height: 26 5/8" Width: 43 1/4" Depth: 14 1/4" Glass Viewing Opening: 15 5/8 x 39 5/8
Weight: 110 lbs Height: 26 5/8" Width: 53 1/4" Depth: 14 1/4" Glass Viewing Opening: 15 5/8 x 49 5/8
Weight: 127 lbs Height: 26 5/8" Width: 63 1/4" Depth: 14 1/4" Glass Viewing Opening: 15 5/8 x 59 5/8
Weight: 148 lbs Height: 26 5/8" Width: 75 1/4" Depth: 14 1/4" Glass Viewing Opening: 15 5/8 x 71 5/8
Features
- Available in 4 sizes: 40, 50, 60, & 72 inches
- Complete with a 2 year limited warranty

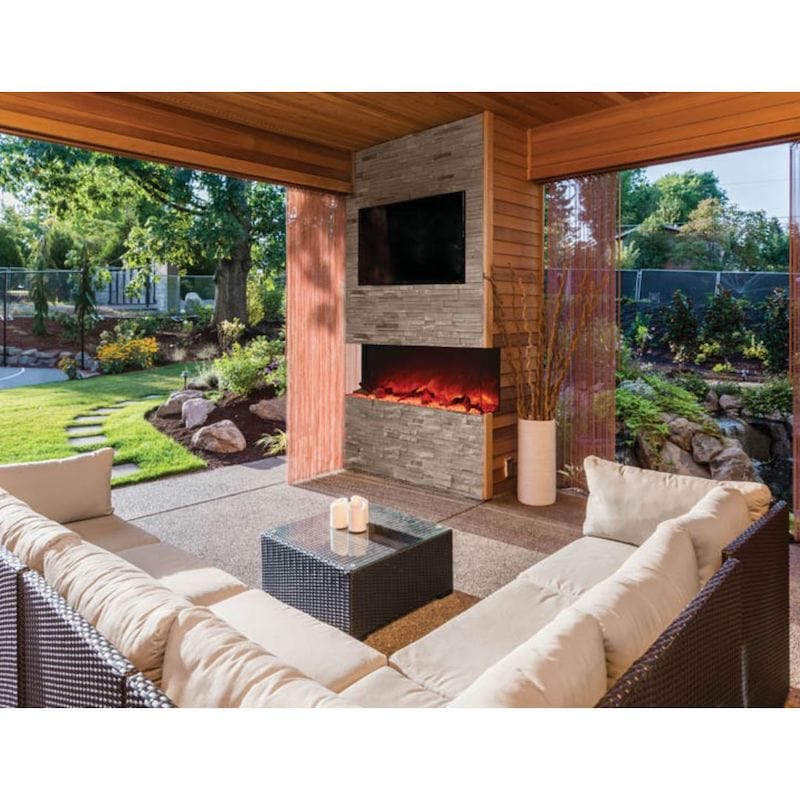

- Indoor & Outdoor rated (Click here for Outdoor Installation)
- 3 Sides of glass viewing
- 4 Instal options - 3 sides, Left side open, Right side open, both sides closed
- Can open left or open right or can have 3 sides open of glass viewing
-
Flame Presentation. State-of-the-art flame presentation.
-
Vibrant, multi-colored state-of-the-art flame presentation – change from Yellow to Orange to Red with just a click of the remote.
- Ambient Canopy Lighting
-
Ambient canopy lighting illuminates media like never before. Cast a colorful glow over the supplied decorative media in the tray below. Cycle through a rainbow of 13 different colors. Blend flame colors with contrasting canopy lighting for a unique presentation – the combinations are limitless.
- IDEAL APPLICATIONS
- Residential spaces
- Patios
- Outdoor spaces
- Commercial spaces
- Restaurants
- New construction or renovations
- Heater & Fan, no adaptors required
- Units are built-in only
- 14 1/4" depth
- True full frame viewing
- Two flame sets 'Dual Flame'
- NEW Thermostat hard-wire ready
- NEW three color strip flame set allows user to change flame colour from blue to purple to violet to rose to yellow to orange with remote control
- No grills
- Heat is emitted through face of unit
- Featuring the latest LED light technology
- Flame operates with or without heat
- 1 remote control for heater, flame & back lighting
- Approx. heating area – 400 sq. ft.
- Plug located on the left side
Technical Specs
| Volts |
120V |
| Amps |
13 A |
| Watts |
1500W max |
| Heater On |
1500 Watts High, 750 Watts Low |
| Heater Off |
22 Watts |
| Rotor Motor |
1 at 5 Watts |
| BTU |
5000 |
Included Accessories
✓ Remote Control
✓ Design Media Kit. Choose between:
-
RUSTIC 14 Piece Deluxe Media Set (DESIGN-MEDIA-14PCE)
-
DRIFTWOOD 15 Piece Deluxe Media Set (DESIGN-MEDIA-15PCE)
-
BIRCH 15 Piece Deluxe Media Set (DESIGN-MEDIA-BIRCH-15PCE)
-
Ice Media Kit (FI-109-DIAMOND)
Optional Accessories
Decorative Fire Glass Media
Our decorative fire glass media is a beautiful addition to your fireplace. Turn your fireplace into a expressive work of art by simply adding our decorative fire glass media. Our fire glass adds a distinctly modern feel to your gas fireplace - mix colors and textures for a unique appearance.
Our decorative fire glass is tempered and will not melt or degrade, some discoloration is normal on glass that is placed directly on the flame.
Always wear protective gloves when handling fire glass media.
One 5lb container of media will cover 1 square foot.
Design Media Log Kit
- DRIFTWOOD 6 Piece Deluxe Media Set (DESIGN-MEDIA-6PCE) | Includes: 6 logs, stones, pebbles, black fire glass, and embers
- RUSTIC 14 Piece Deluxe Media Set (DESIGN-MEDIA-14PCE) | Includes: 14 logs, stones, pebbles, black fire glass, and embers
- BIRCH 15 Piece Deluxe Media Set (DESIGN-MEDIA-BIRCH-15PCE) | Includes: 15 logs, stones, pebbles, black fire glass, and embers
- DRIFTWOOD 15 Piece Deluxe Media Set (DESIGN-MEDIA-15PCE) | Includes: 15 logs, stones, pebbles, black fire glass, and embers
Ice Media
◦ FI-105-Diamond: 1 large, 2 mini clear nuggets, 95 Clear & 10 Blue Diamond Media
◦ FI-106-Diamond: 3 extra large clear glass nuggets
◦ FI-107-Diamond: 6 mini clear glass nuggets
◦ FI-109-Diamond: 3 Large clear nuggets, 95 Clear & 10 Blue Diamond Media, pkg of clear media, and a package of small clear media
TRU VIEW SERIES BROCHURE
User Manual | Specifications Guide
40-inch:
50-inch:
60-inch:
72-inch:
