Fire Torch - Hercules

OPT-TT5M

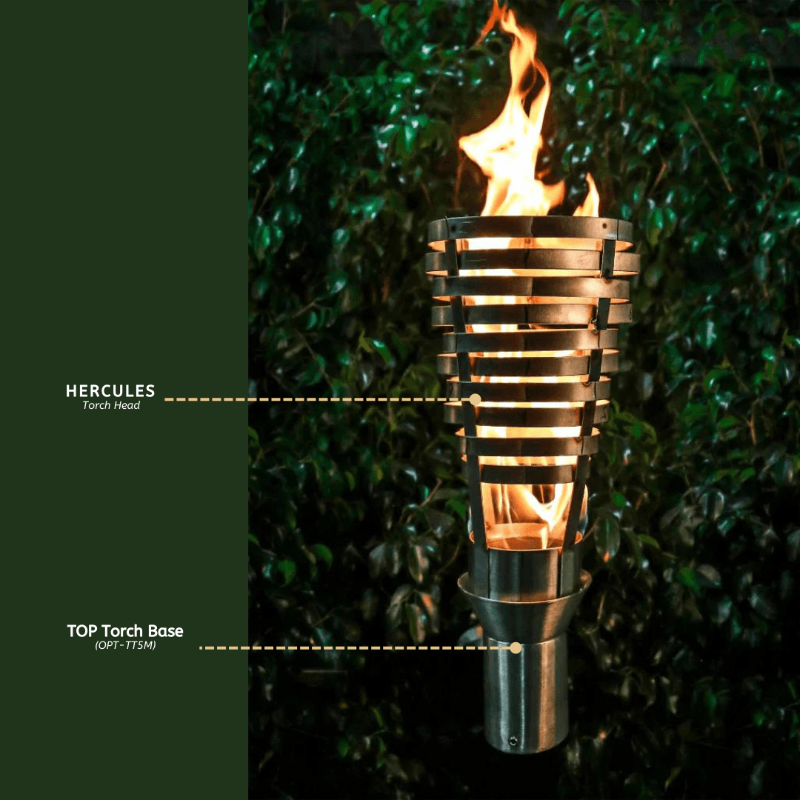

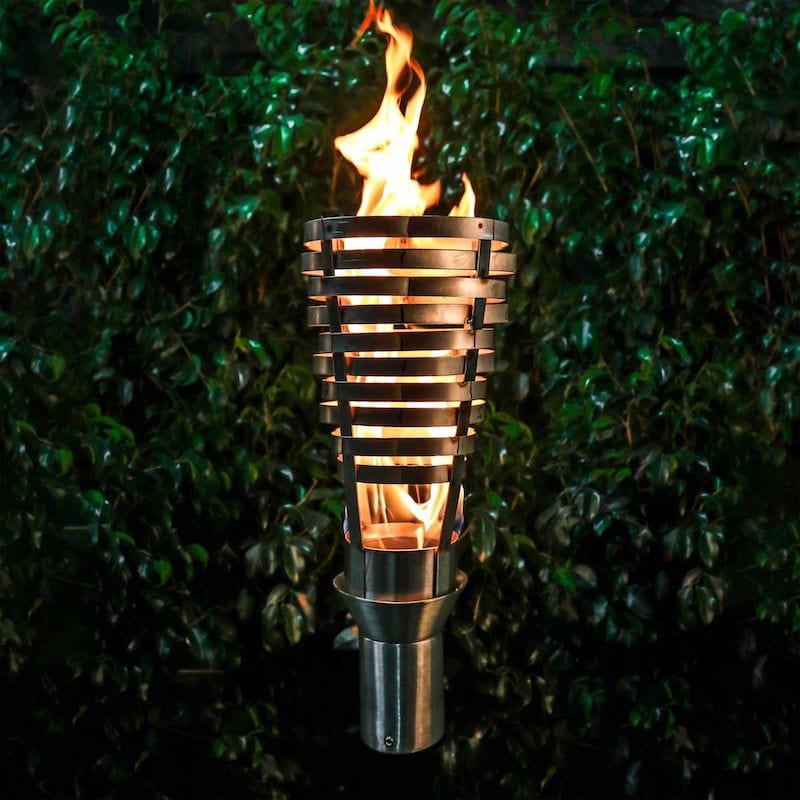

Hercules Fire Torch

Enhance your pool experience and landscaping design with our High-Quality TOP Torches.

All TOP Torches are manufactured from 304 Stainless Steel. This protects them from the constant heating & cooling down which can break down other metals. Stainless Steel also prevents corrosion which can be caused by natural elements. All are proudly made in the USA.

They are compatible with either Natural Gas or Liquid Propane and operate at 20,000 BTU/hr.

Torches are for outdoor use only and should not be used during rain. Available in match-lit ignition options only.

What's Included:
  • Torch Head - HERCULES
    • Torch Head Material: 304 Stainless Steel
    • Height: 14"
    • Diameter: 8"
    • Fuel Type: Gas
    • BTU: 20,000
  • Mounting Options. Choose between: TOP Torch Base or TOP-Lite Torch Base

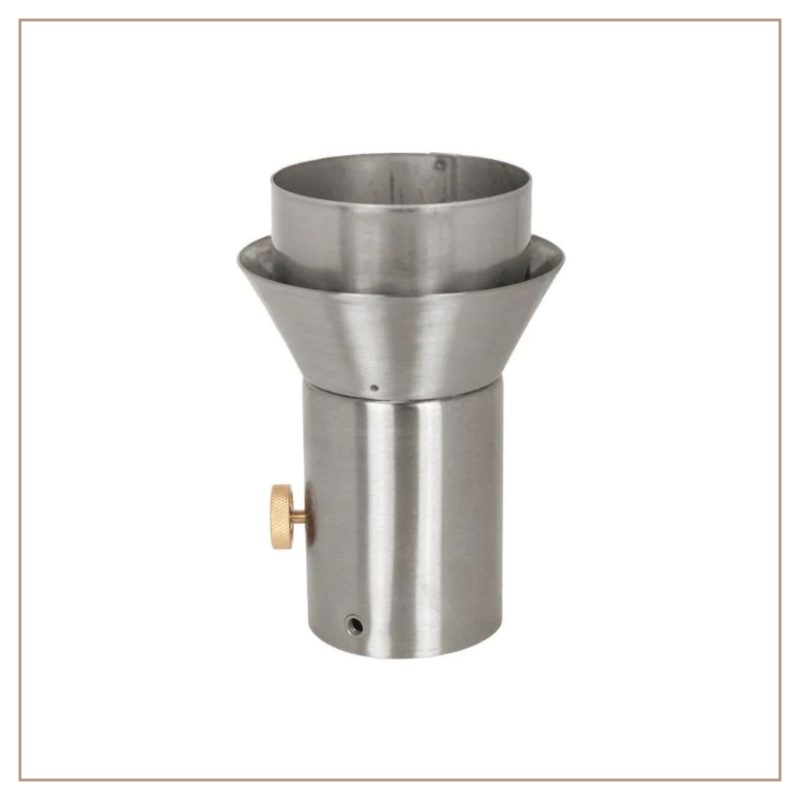

Original TOP Torch Base
(OPT-TT5M)
TOP-Lite Torch Base
(OPT-TCH5SS)

- Built-in Needle valve for precise flame adjustment
- Torches can be fitted onto any 2 1/2″ posts with hex bolts
- 3/8″ flared gas inlet connection
- This is the best option if the torch is to be installed on a post with the gas line hidden inside the post.

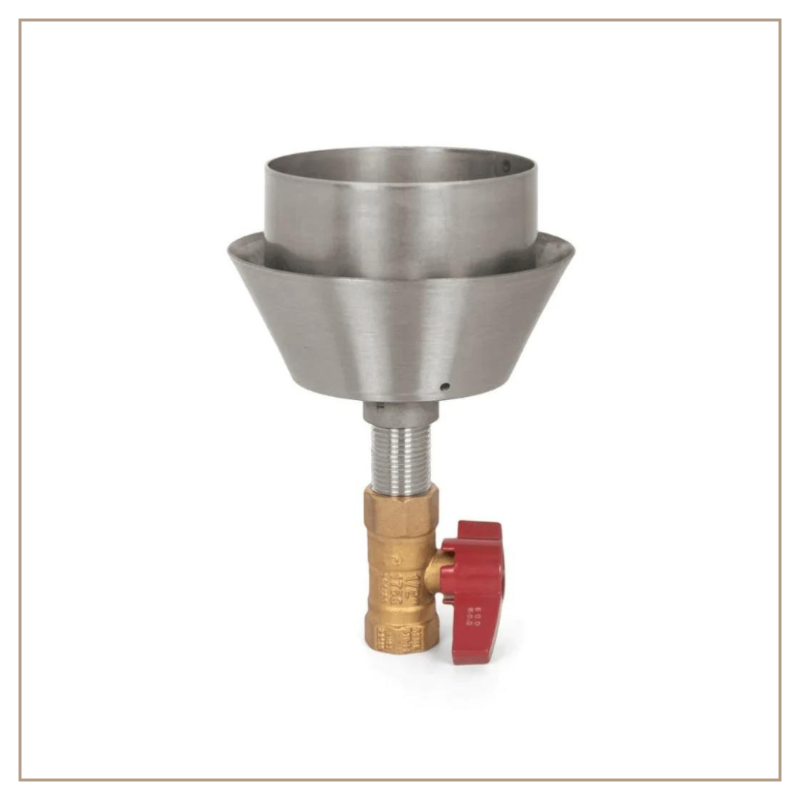

TOP Torch Base

- Designed for easy installation.
- 1/2″ Gas inlet
- Torches can be fitted to any 1/2″ gas pipe with threading.
- NO NEEDLE VALVE
- base uses a manual ball valve
- This is the best option if the torch will be directly connected to a gas pipe

TopLite Torch Base



Installation is easy! Just connect the Torch Head to the Mounting Torch Base then connect it to a post. If you don't have a post, you can purchase the In-Ground Torch Post as an accessory; a gas line can be hidden inside this post. The post should then be secured to the ground it will be installed in. You can get the Deck Post Mount to hold the In-Ground Torch Post in place as an accessory as well.


FIRE TORCH ACCESSORIES

Complete Kit for Original TOP Torch Base:

In order to operate a single torch, you can get the TOP Torch & Post Kit which now comes with all components needed for installation. With this kit, there is no need to order the components à la carte! The kit is only available for the Original TOP Torch Base. Choose between:



Liquid Propane Kit TOP Torch
  • Liquid Propane Kit
    (OPT-TPK5LP)
        ◇ Torch Head
        ◇ In-Ground Post
        ◇ Anchoring Post
        ◇ LP Regulator (8')
        ◇ Deck Post




NG Kit TOP Torch
  • Natural Gas Kit
    (OPT-TPK5NG)
        ◇ Torch Head
        ◇ In-Ground Post
        ◇ Anchoring Post
        ◇ SS Whistle Free Hose (1/2")
        ◇ Deck Post





Individual Accessories:

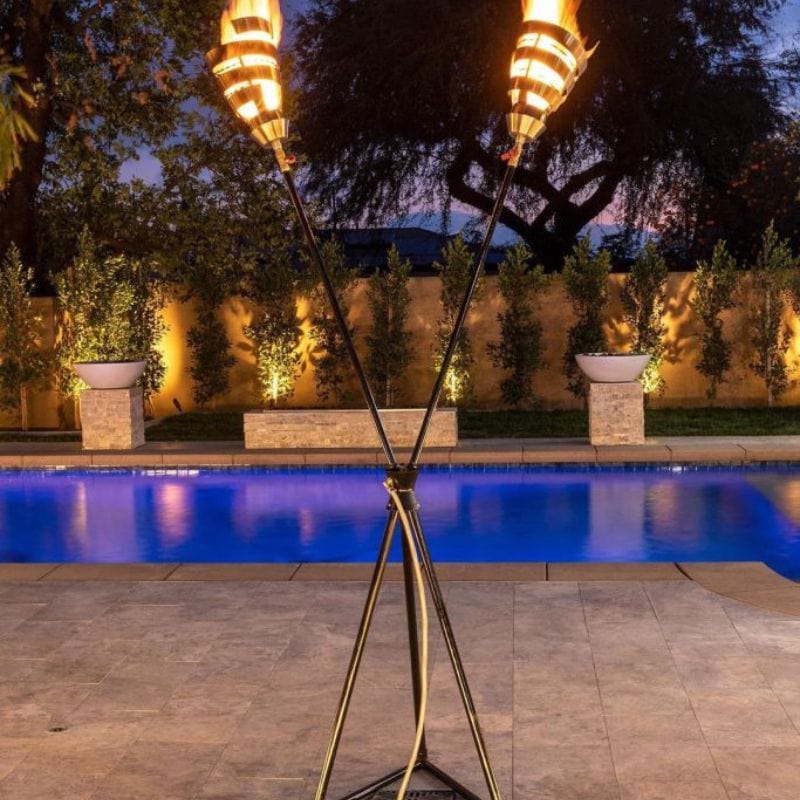

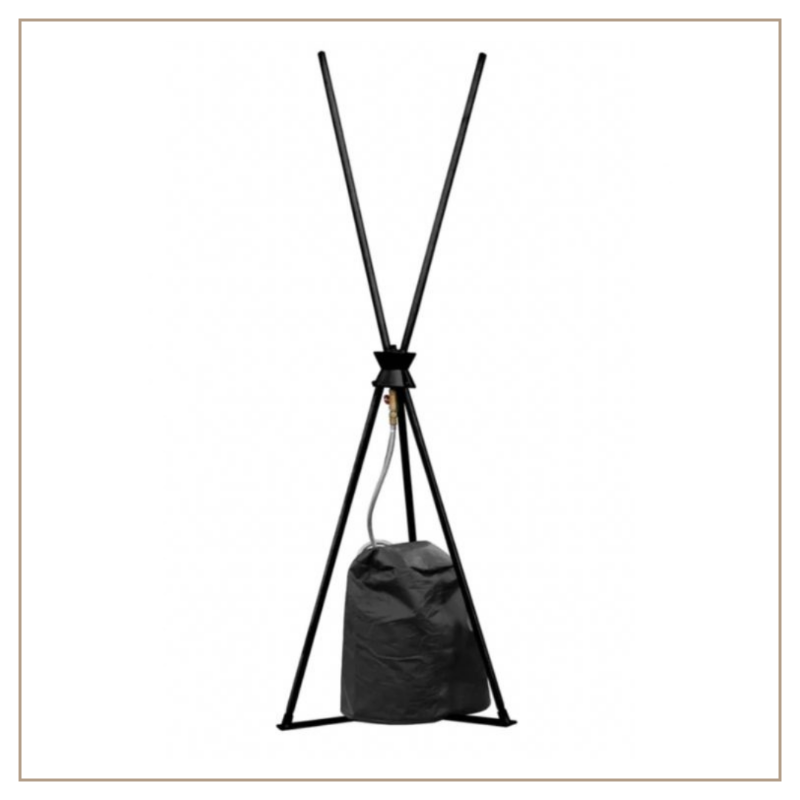

TopLite Torch Stand
  • TopLite Fire Torch Stand
    (Choose between Natural Gas or Liquid Propane)
    • Natural Gas (OPT-TSTNDNG): Includes SS Whistle Free Hose
    • Liquid Propane (OPT-TSTNDLP): Includes LP Regulator
    • Compatible with the TOP-Lite Torches ONLY
    • Powder Coated Steel
    • Footprint: 18" x 18"
    • Torch to Torch Distance: 36"
    • Gas Connection: 1/2"
    • Tank Cover not included

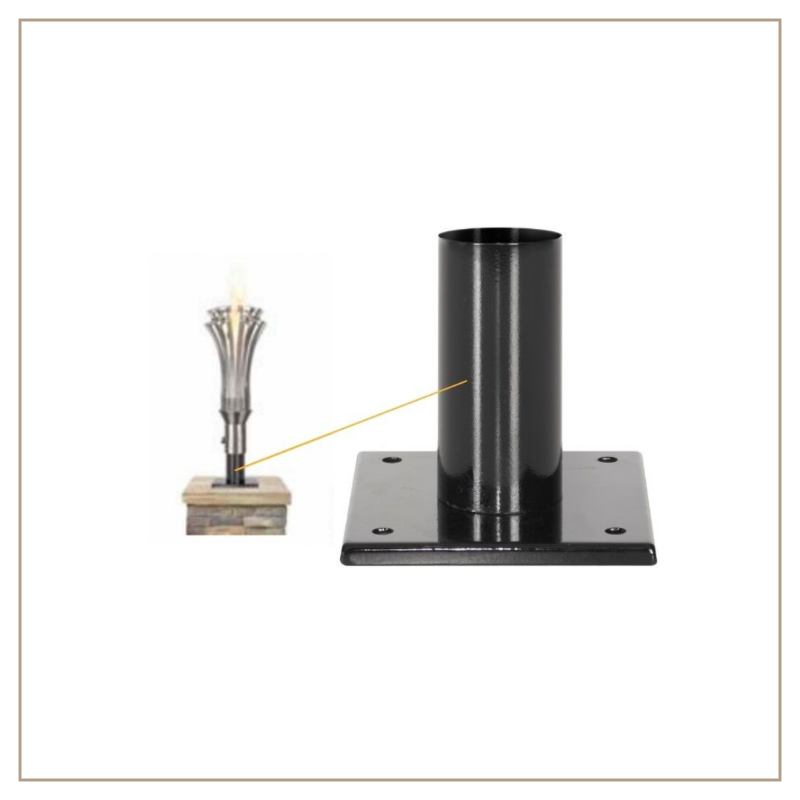

TOP Torch Column Mount
  • TOP Torch Column Mount
    • SKU: OPT-TTCM
    • Compatible with the Original TOP Torch Base ONLY
    • Not Compatible with the TOP-Lite Torch Base
    • For installation on top of a column
    • Material: Steel
    • Finish: Black Powder Coat
    • Length/Width: 8"
    • Height: 8"

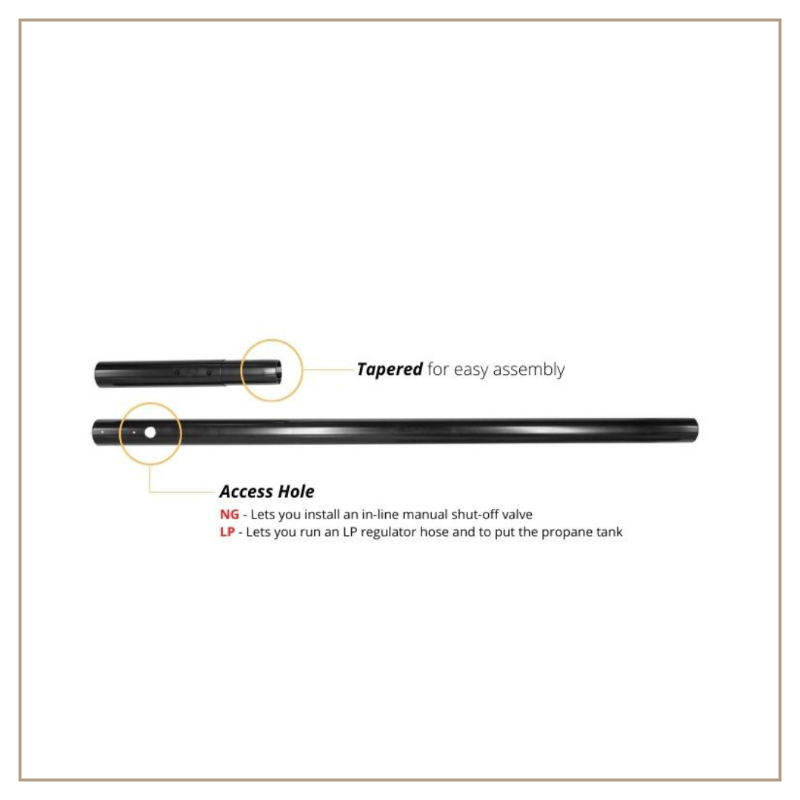

In-Ground Post for TOP Torch
  • In-Ground Post for TOP Torch
    • SKU: OPT-TTBP
    • Compatible with Original TOP Torch Base ONLY
    • Not Compatible with TOP-Lite Torch Base
    • Needs a Deck Post Mount to secure on the ground
    • Gas line can be hidden inside the pole
    • Finish: Powder Coated Steel
      • Diameter: 2 1/2"
      • Height: 80"
      • 16" Anchor Post
      • 68" Post

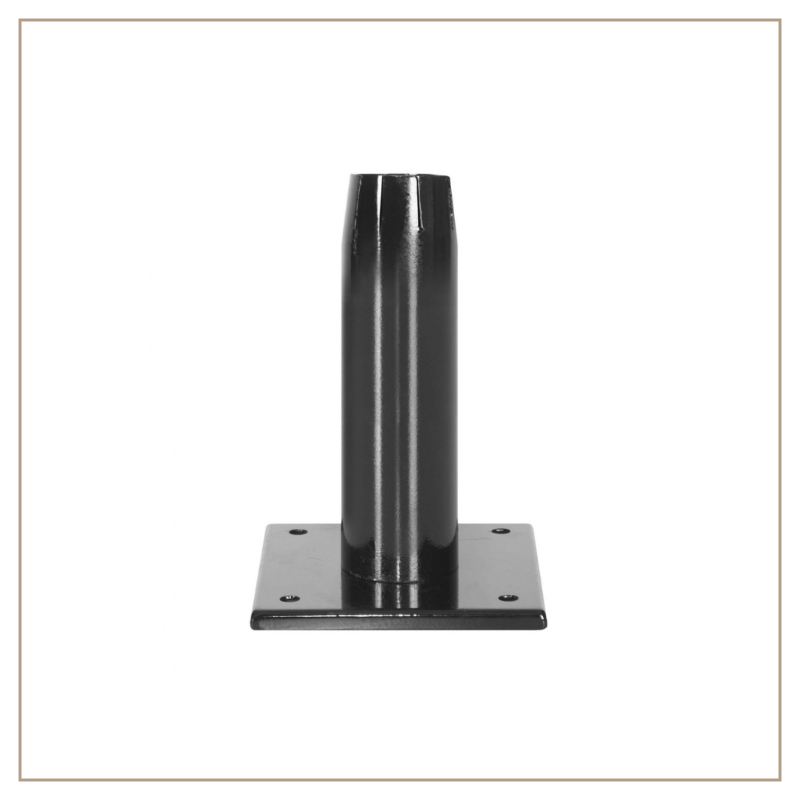

Deck Post Mount
  • Deck Post Mount
    • SKU: OPT-TTDP
    • Use together with the In-Ground Post (above) to secure your post
    • Designed to aid in mounting the post on any hard surface (Wood, Concrete, etc.)
    • Finish: Black Powder Coated Steel
    • Opening: 2 5/8"
    • This post is sold separately




Deck Post Mount

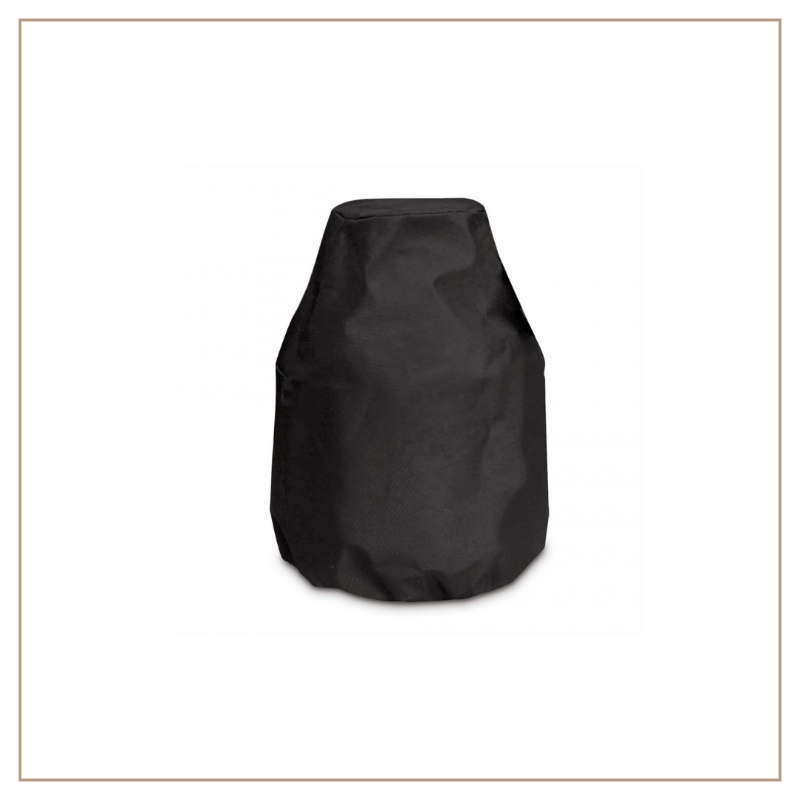

  • Propane Tank Cover
    • SKU: OPT-LPCOVER
    • Black Canvas Cover
    • For standard 20lbs LP Tank





Fire Torch Catalog
Fire Torch Installation oManual
