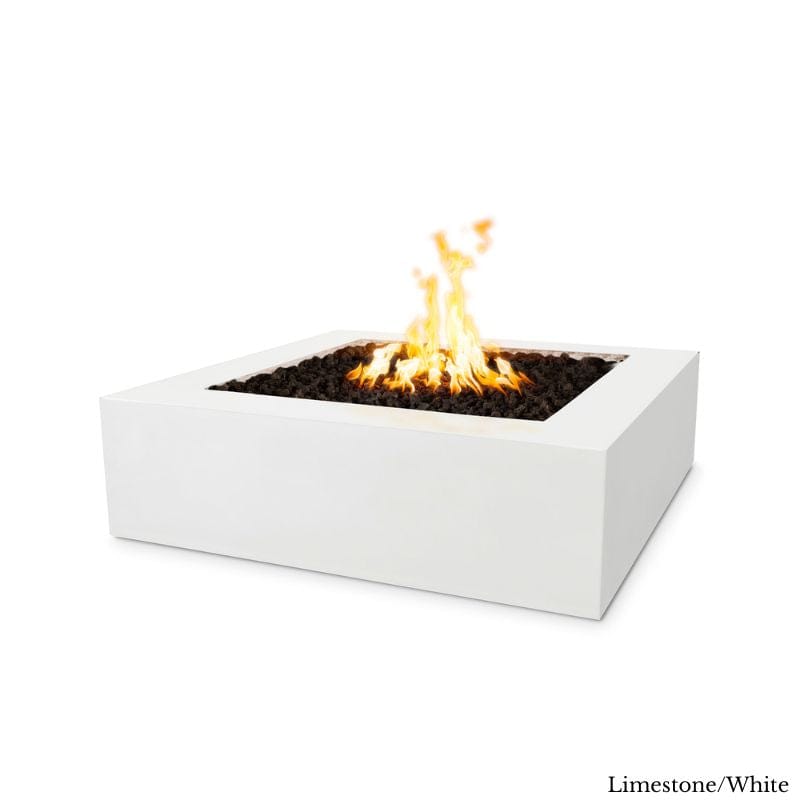

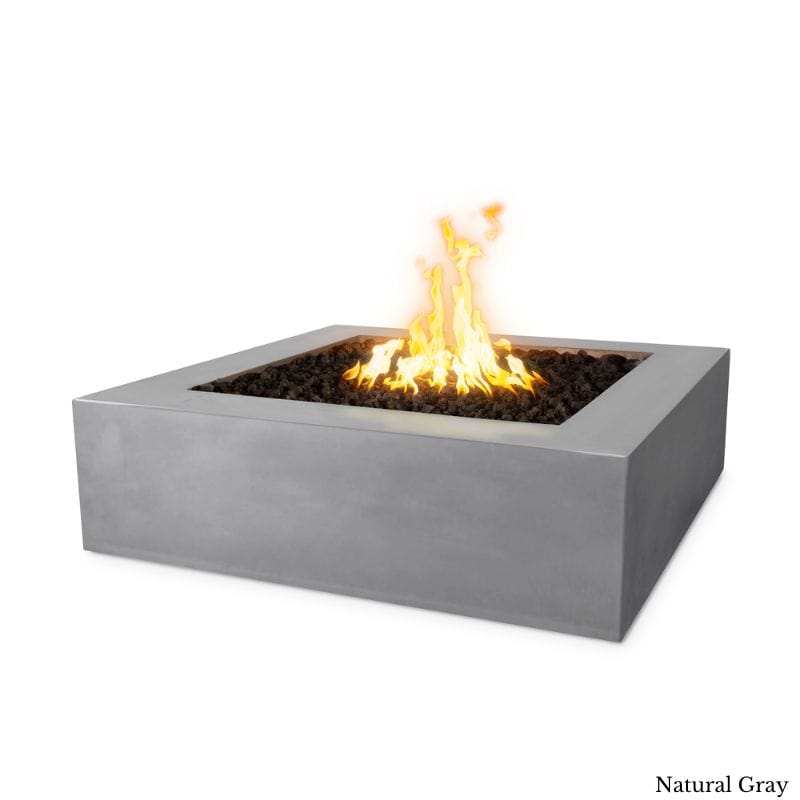

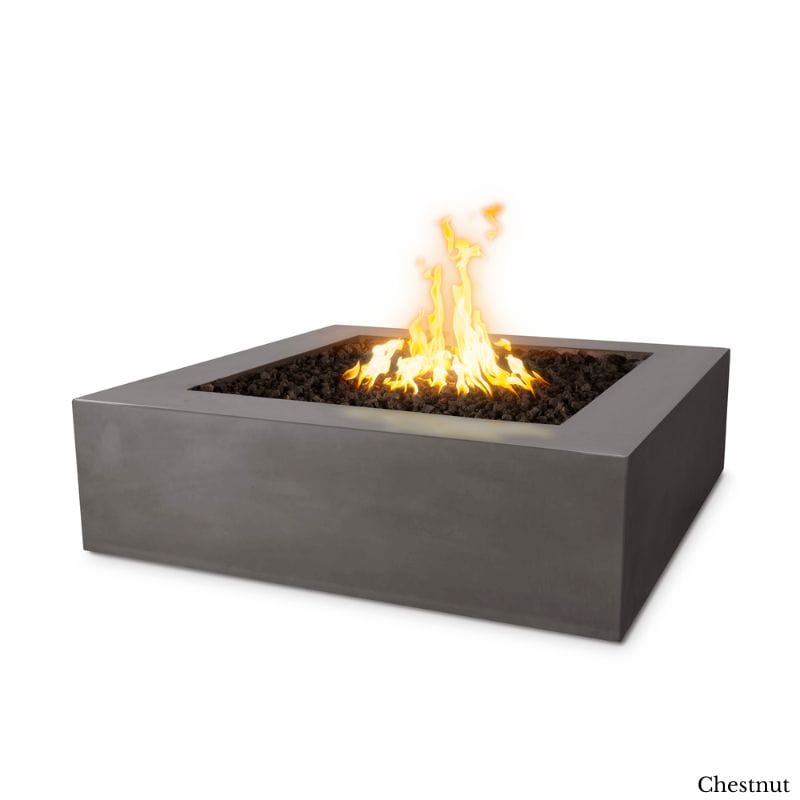

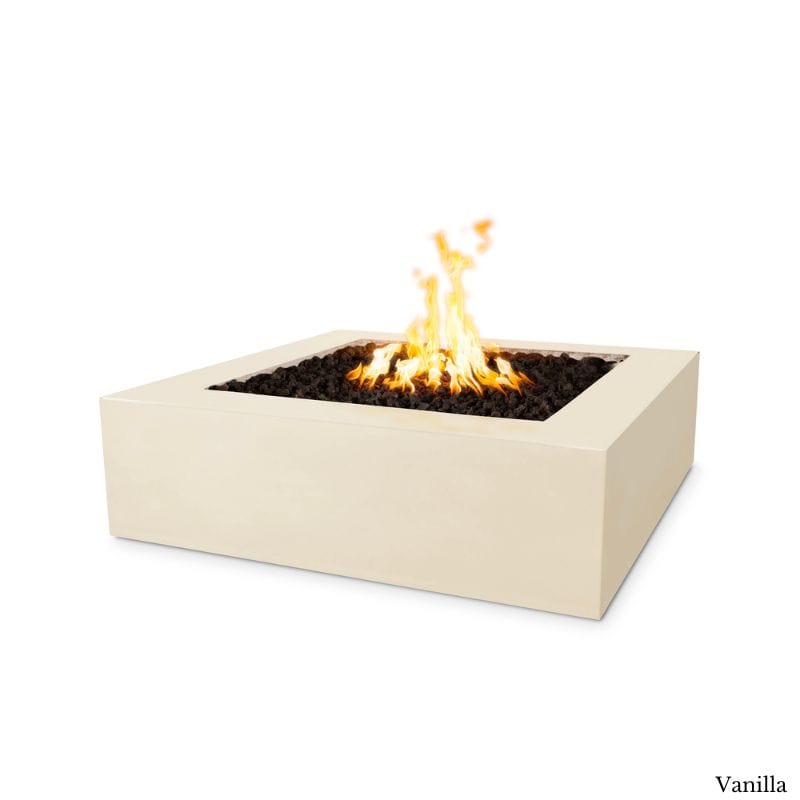

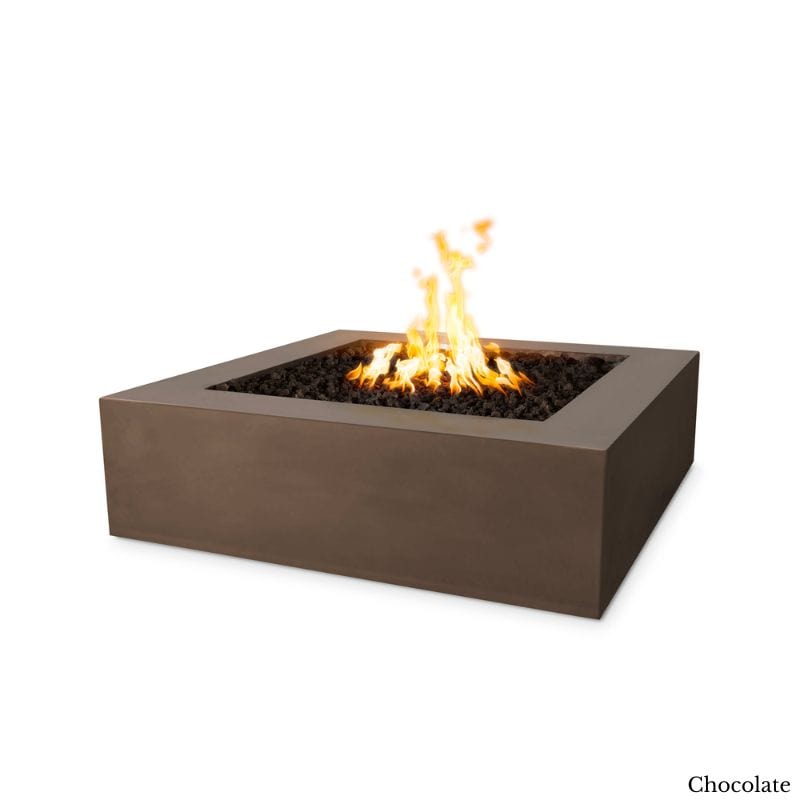

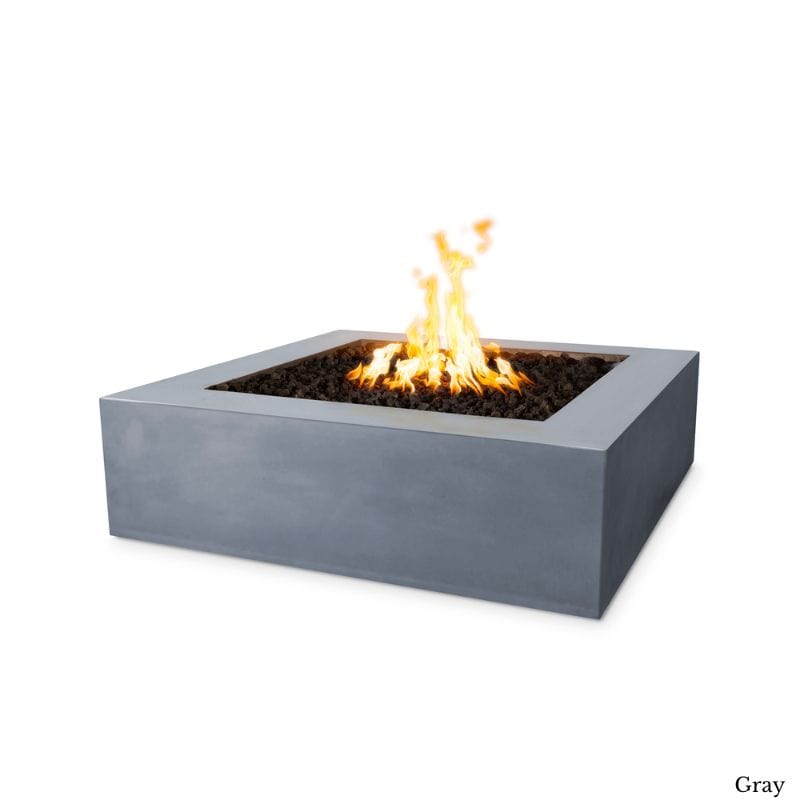

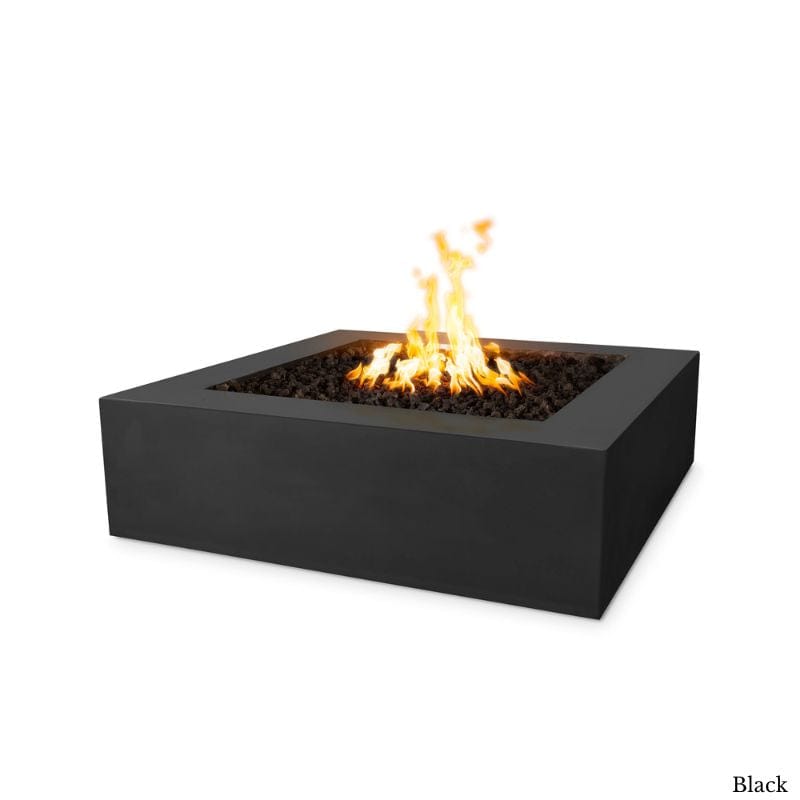

Quad Concrete Fire Pit

Quad Concrete Fire Pit

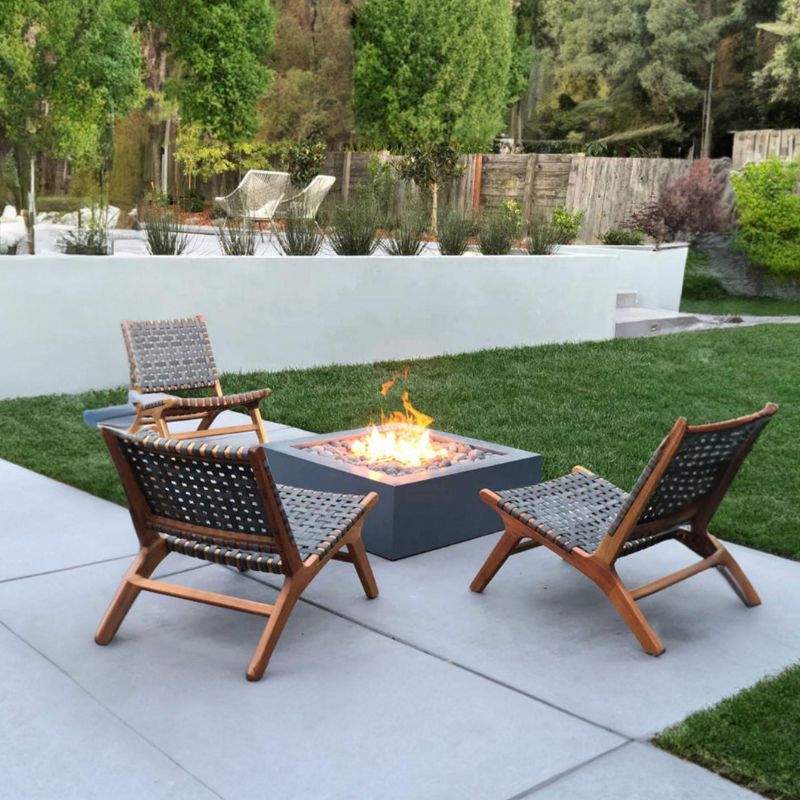

The Quad Concrete Fire Pit is made from a memory, a memory made of simplicity and style. Its square shape and low-to-the-ground height make the Quad a beautiful centerpiece in your outdoor space.

Our Fire Pits are individually handmade and proudly manufactured in the U.S.A. The fire pits we manufacture are durable and long-lasting in a variety of environments. Because of its handmade nature, slight variations in color and texture may occur.

Quad Concrete Fire Pit
SPECIFICATIONS

	36-INCH	42-INCH
SIZE	36" L x 36" W x 12" H	42" L x 42" W x 12" H
BURNER AREA	28" x 28"	34" x 34"
WEIGHT	180 lbs	215 lbs
BTU	65,000	65,000
Sugg. Fire Glass	75 lbs	12 lbs

Key Features:

• Fire Pit Material: GFRC Concrete
• Pan Material: 304 Stainless Steel
• Burner Material: 304 Stainless Steel

GFRC CONCRETE:

Glass Fiber Reinforced Concrete material provides a pleasing aesthetic and structural integrity that lasts a lifetime.
Benefits of GFRC Concrete:

• Longevity
• Design Versatility
• Lightweight Construction
• Minimal Upkeep Required; and
• High Impact and Weather Resistance

IGNITION TYPES

Model	Match Lit	Match-Lit Flame Sense (-FSML)	Flame Sense Spark Ignition (-FSEN)	Plug & Play (-EKIT)	Low Voltage (-E12V)
IGNITION TYPE	Manual	Manual	Spark Ignition	Electronic	Electronic
GAS TYPE	LP or NG	LP or NG	LP or NG	LP or NG	LP or NG
USAGE • (R) | Residential Only • (P) | Poolside-Ready • (RC) | Residential & Commercial Use	(R)	(P) / (RC)	(P) / (RC)	(RC)	(P) / (RC)
AUTOMATION	N/A	N/A	N/A	✔	✔
POWER SOURCE	Manual	Manual	AAA Battery	110V	12V
KEY VALVE	Manual Key Valve	Integrated Key Valve	Integrated Key Valve	Integrated Key Valve	Integrated Key Valve
Automatic Shut-Off	Manual Shut-Off	Manual Shut-Off	Manual Shut-Off	✔	✔
Additional Information	You will need a gas valve such as a chrome key valve to be installed to light the burner. To operate, turn the key to the ON position and ignite the gas with a match, taper, or lighter. The flame can be adjusted and turned off with the key valve.	This ignition type works like the standard Match Lit systems but includes technology that monitors the flame. The gas supply is automatically shut off if the flame goes out accidentally to prevent a dangerous gas build-up.	Spark Ignition systems use batteries to ignite the flame with a button on the fire pit's control panel. They also feature Flame Sensing technology that automatically shuts off the gas supply if the flame goes out unexpectedly.	This Standard Voltage Electronic Ignition is suitable for fire pits in locations with power access, but not near water. These systems have Flame Sensing and will automatically relight if the flame goes out.	Low-voltage Electronic Ignition systems are recommended for installations near water features, fountains, and pools. This system includes Flame Sensing, which will automatically relight the flame if it gets blown out.
User Manual
