Earthstone Ovens Model-90-PA Wood Fired Oven

Your Price:
$10,650.00

EarthStone-Model-90-PA
  • FREE SHIPPING!
  • FREE Wood-Fired Recipe eBook!
  • UL Certified for Indoors & Outdoors

Quantity

Checkout Secure
Checkout Secure

  • Image of Customer Satisfaction
    Customer Satisfaction
  • Image of Small Biz!
    Small Biz!
  • Image of Free Freight Shipping
    Free Freight Shipping
  • Image of Norton Guarantee
    Norton Guarantee

Indoor Wood Fired Oven (Model 90-PA)

For centuries Europeans have used wood fired ovens in homes and restaurants.  Now you can too!  The EarthStone pre-assembled ovens are designed with you in mind!

This pre-assembled oven comes as either wood fired or gas fired giving you the best of both worlds.  This oven is perfect for your home kitchen or outdoor patio.  Additionally, this pre-assembled oven can be decorated to match the appearance of your home.

The cooking area in this wood-burning oven is 35" diameter - plenty for the following food capacities:

  • 8" Pizzas: 3-4
  • 12" Pizzas: 2-3
  • 16" Pizzas:  1
  • Eight medium size steaks on 17" x 20" grilling rack
  • Six large steaks on 17" x 20" grilling rack

Unlike a conventional oven, the Earthstone wood-fired oven will help you achieve a combination of smoking, baking, and roasting, techniques that will translate into delicious, healthy, and extremely flavorful food.

If you need a gas oven, look at the Model 90-PAGW which three modes of operation: gas fired, gas and wood combination and wood fired.

Order your gas or wood-fired oven today and start preparing delicious, innovative, and nutritious foods just like your favorite restaurants!

Features

Ovens come standard with:

  • Factory finished stainless steel top with black bottom
  • Digital temperature controller
  • Cast aluminum door
  • Black granite shelf
  • S/S Hood cover
  • S/S Shelf apron
  • S/S Flue adapter
  • Stainless pizza peel
  • Black perforated grill (Optional three-tier shelf available)
  • 5 year limited warranty
  • The Model 90-PA wood fired oven has a 35" interior cooking diameter and a 20" wide by 9½" high oven entrance. The body parts are a cast 4 to 6 inch thick dense, high temperature refractory material with an 80% alumina content and additional special additives which stop deterioration from acids emitted by wood combustion.
  • The Model 90-PA is U.L. listed for installation with a 1-inch side clearance to combustible materials. Total weight 2500 lb.
  • The steel support frame and enclosure are constructed of heavy gauge welded tube steel and angle iron members. All precisely fabricated and attractively designed. The void area between the cast oven body and steel circular enclosure is entirely filled with 4 to 20 inches of a hardened lightweight insulation mixture, which forms a secondary molded body. The combination of our thick cast refractory body and an outer insulation shell maximizes the thermal mass or heat storage capacity of the oven which allows for an extremely efficient oven that cooks at even non fluctuating temperatures. The temperature probe is placed 3½" into the dome or top of the oven in lieu of on the floor in order to avoid temperature readout fluctuations caused by food items placed on the floor.

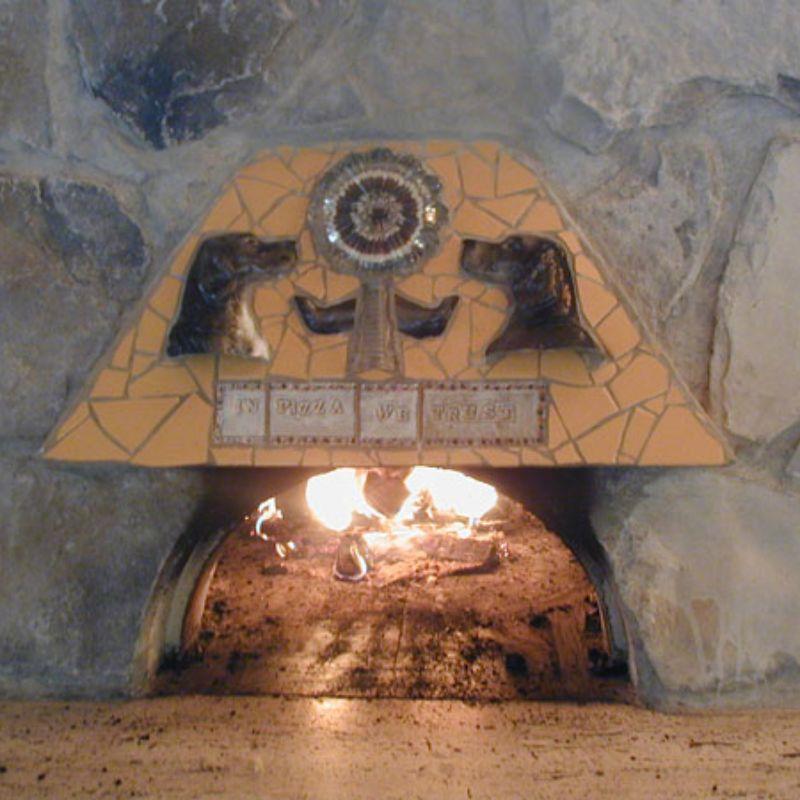

  • A stainless steel adapter sleeve is placed over the standard eyebrow hood, which comes with either a stainless steel or copper hood cover.
  • The hearth floor tiles, "Pierre de Boulanger" (Bakers Tiles), which are used in industrial bread baking ovens all across Europe, are refractory material pressed at 8,500 p.s.i. and kiln fired at 2,800 degrees which ceramitizes the material to create a hard and extremely durable tile. Both the body pieces and floor tiles are cast and assembled individually which allows for continuous joints throughout the entire oven. This greatly reduces the possibility of stress cracks due to normal heat expansion and contraction. In addition, this allows the ovens to be serviceable which extends their usable life.
Specs
  • Exterior Diameter: 50"
  • Height: 80"
  • Weight: 2,500 lbs.
  • Interior Diameter: 35"
  • Oven Entrance Opening: 20"W x 9½"H
  • Clearance to Combustible Sidewalls: 1"



The heavy duty gas burner system is engineered for optimum performance and long term reliable operation through a straightforward design and the use of high-quality components. The solenoid based burner control automatically adjusts flame height and intensity to maintain the preset temperature. All our PAGW models are manufactured in Los Angeles.

Installation Manual

Earthstone Oven User Manual

Model 90-PA Wood Fired Specification Guide

Earthstone Oven Model 90-PA Specification Guide



Residential Venting Guide

 Residential Venting Guide

Videos

Watch this video to learn more about the Earthstone Ovens incredible offerings!

 Warranty

This oven comes with a limited warranty.

We understand your love of fire and can help turn a boring backyard into an outdoor paradise focusing on friends, food, and fire!

Patio & Pizza National Associations

QUESTIONS & ANSWERS

Ask a Question
  • Could I use this oven the model 90 in a concession trailer. I would use it for local festivals and catering.

    Certainly!  The Earthstone Model 90 is a UL-Listed Commercial Oven that can be used indoors.  As long as your trailer could handle the weight and the oven was vented properly, this oven should work fine for you.  Feel free to reach out to us via hello@patioandpizza.com or give us a call at 888-671-2342 so we can help you further.
