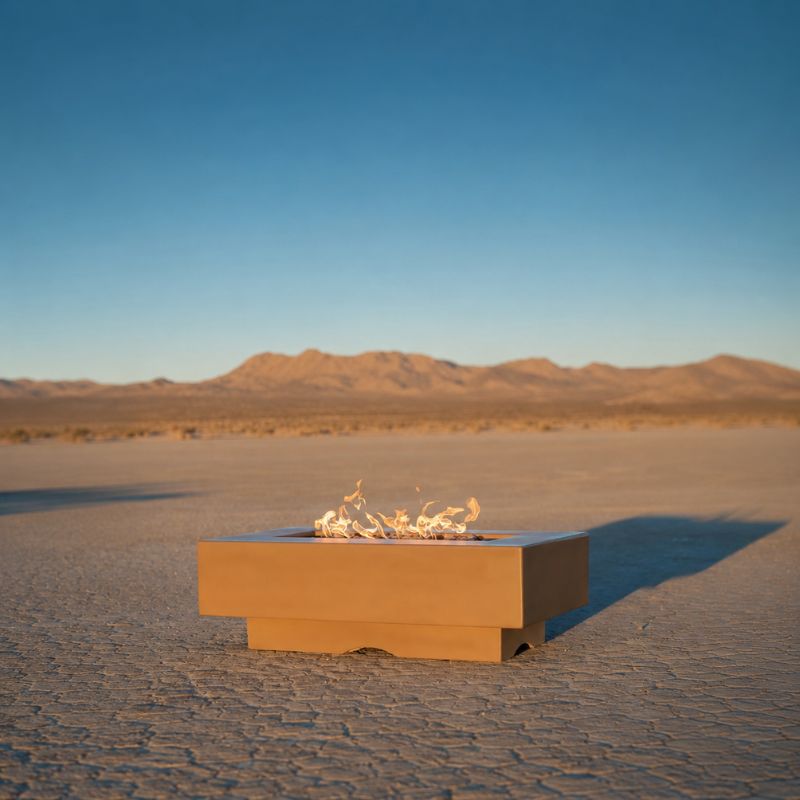

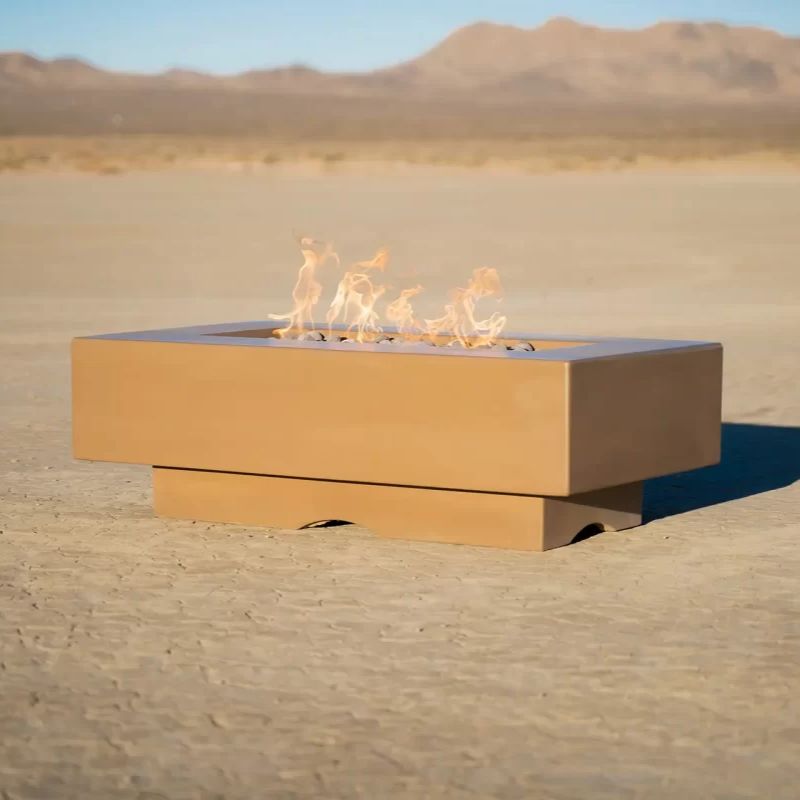

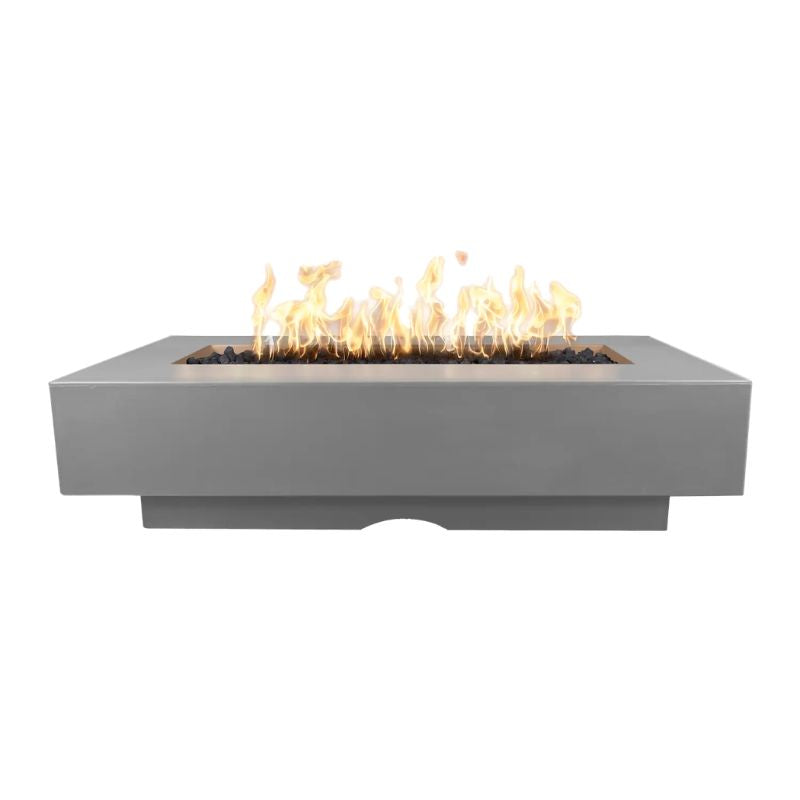

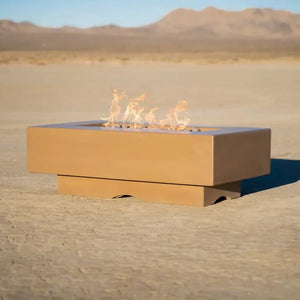

Del Mar Concrete Fire Pit

Del Mar Concrete Fire Pit

The Del Mar Collection Fire Pit is perfect for anyone who wants to add a touch of California class to their backyard. The rectangular design is elegant and timeless, and the pit is hand-made in the USA, ensuring quality and durability. Guests will love gathering around this fire pit to stay warm and socialize.

So if you're looking for a beautiful and practical addition to your outdoor space, the Del Mar Collection Fire Pit is just what you need!

Del Mar Concrete Fire Pit
SPECIFICATIONS

	48-INCH	60-INCH	72-INCH	84-INCH	96-INCH
SIZE	48” x 28”	60” x 28”	72” x 28”	84” x 28”	96” x 28”
HEIGHT	15"	15"	15"	15"	15"
BURNING AREA	32" x 12"	44" x 12"	56" x 12"	68" x 12"	80" x 12"
PAN SIZE	30"x 10"	42"x 10"	54"x 10"	66"x 10"	78"x 10"
WEIGHT	375 lbs	435 lbs	510 lbs	650 lbs	760 lbs
BTU	40,000	50,000	70,000	90,000	240,000
SUGG. FIRE GLASS	50 lbs	50 lbs	74 lbs	100 lbs	100 lbs

Key Features:

• Fire Pit Material: GFRC Concrete
• Finish: Smooth Concrete
• Pan Material: 304 Stainless Steel
• Burner Material: 304 Stainless Steel
• Standard 2" Depth on all pans

GFRC CONCRETE:

Glass Fiber Reinforced Concrete material provides a pleasing aesthetic and structural integrity that lasts a lifetime.
Benefits of GFRC Concrete:

• Longevity
• Design Versatility
• Lightweight Construction
• Minimal Upkeep Required; and
• High Impact and Weather Resistance

IGNITION TYPES

Model	Match Lit	Match-Lit Flame Sense (-FSML)	Flame Sense Spark Ignition (-FSEN)	Plug & Play (-EKIT)	Low Voltage (-E12V)
IGNITION TYPE	Manual	Manual	Spark Ignition	Electronic	Electronic
GAS TYPE	LP or NG	LP or NG	LP or NG	LP or NG	LP or NG
USAGE • (R) | Residential Only • (P) | Poolside-Ready • (RC) | Residential & Commercial Use	(R)	(P) / (RC)	(P) / (RC)	(RC)	(P) / (RC)
AUTOMATION	N/A	N/A	N/A	✔	✔
POWER SOURCE	Manual	Manual	AAA Battery	110V	12V
KEY VALVE	Manual Key Valve	Integrated Key Valve	Integrated Key Valve	Integrated Key Valve	Integrated Key Valve
Automatic Shut-Off	Manual Shut-Off	Manual Shut-Off	Manual Shut-Off	✔	✔
Additional Information	You will need a gas valve such as a chrome key valve to be installed to light the burner. To operate, turn the key to the ON position and ignite the gas with a match, taper, or lighter. The flame can be adjusted and turned off with the key valve.	This ignition type works like the standard Match Lit systems but includes technology that monitors the flame. The gas supply is automatically shut off if the flame goes out accidentally to prevent a dangerous gas build-up.	Spark Ignition systems use batteries to ignite the flame with a button on the fire pit's control panel. They also feature Flame Sensing technology that automatically shuts off the gas supply if the flame goes out unexpectedly.	This Standard Voltage Electronic Ignition is suitable for fire pits in locations with power access, but not near water. These systems have Flame Sensing and will automatically relight if the flame goes out.	Low-voltage Electronic Ignition systems are recommended for installations near water features, fountains, and pools. This system includes Flame Sensing, which will automatically relight the flame if it gets blown out.
