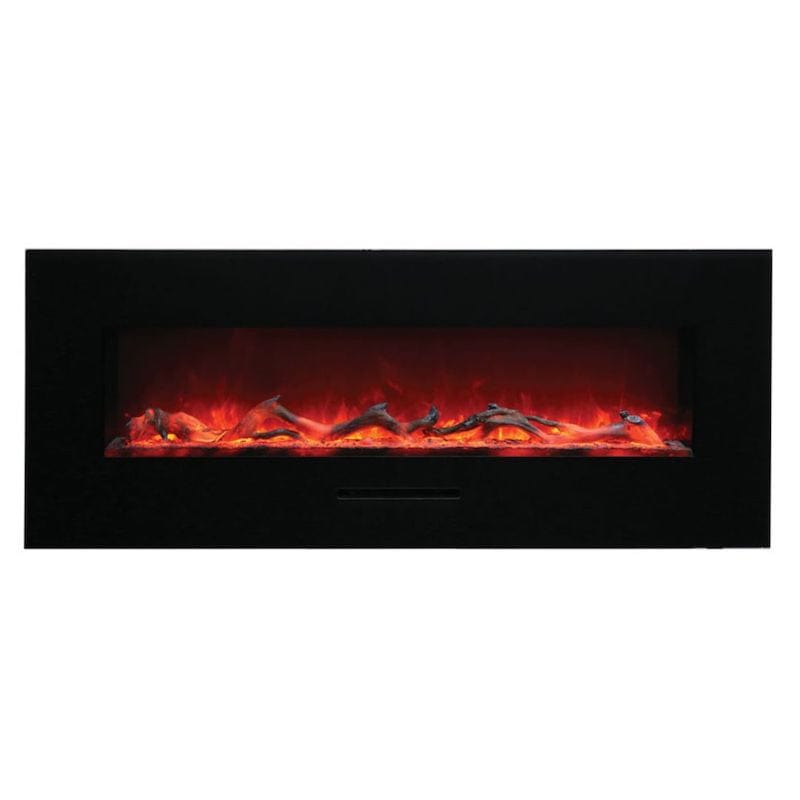

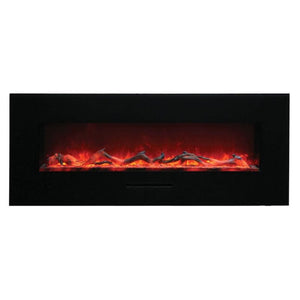

Wall Mount Flush Mount with Glass Surround Electric Fireplace
The Wall Mount/Flush Mount series features an exclusive Fire and Ice flame presentations. Simply wall-mount or built-in flush with the included brackets.
Heat is emitted from a single slot in the face of the surround. 13 colors of surround back-lighting illuminate spaces creating even more ambiance. All Built-In Flush Mount / Wall Mount fireplaces come standard with a driftwood style log set and optional decorative media of EMBER or FIRE & ICE media are available for purchase.
A standard surround is included in the box for the VM FM series in black - White glass surrounds are available for additional purchase.
Fireplace Dimensions
Weight: 50 lbs Height: 19 7/8" Width: 25 1/2" Depth: 6 1/8" Glass View Height: 10 Glass View Width: 23 1/2 Surround Height: 23 Surround Width: 35 1/2
Weight: 58 lbs Height: 19 7/8" Width: 33 1/2" Depth: 6 1/8" Glass View Height: 10 Glass View Width: 31 1/2 Surround Height: 23 Surround Width: 43 1/2
Weight: 74 lbs Height: 19 7/8" Width: 47 1/2" Depth: 6 1/8" Glass View Height: 10 Glass View Width: 45 1/2 Surround Height: 23 Surround Width: 57 1/2
Weight: 88 lbs Height: 19 7/8" Width: 59 1/4" Depth: 6 1/8" Glass View Height: 10 Glass View Width: 57 1/4 Surround Height: 23 Surround Width: 69 1/4
Weight: 106 lbs Height: 19 7/8" Width" 71" Depth" 6 1/8" Glass View Height: 10 Glass View Width: 69 Surround Height: 23 Surround Width: 81

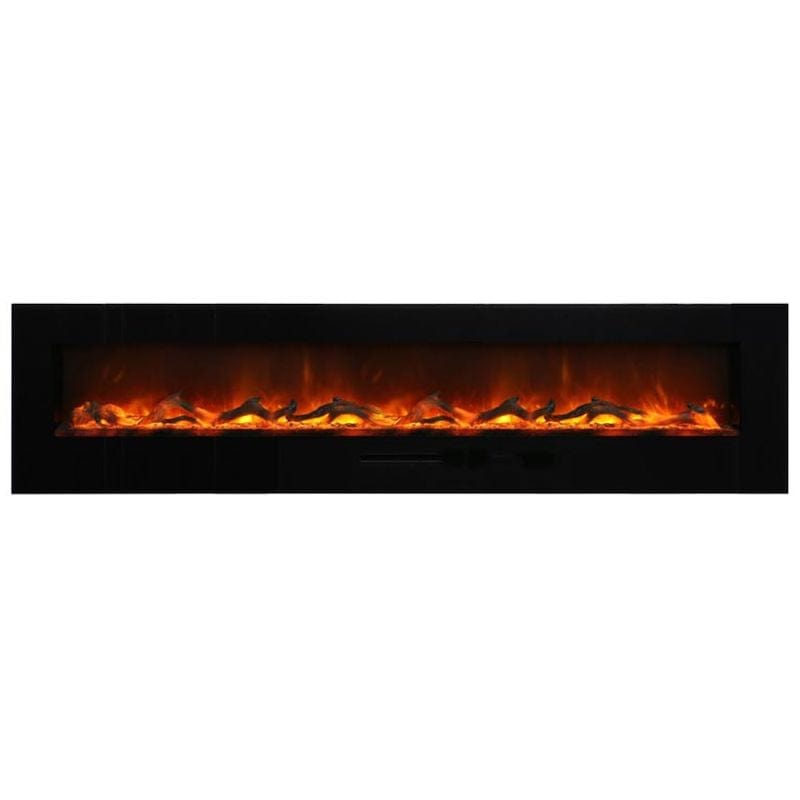

Weight: 127 lbs Height: 19 7/8" Width: 88" Depth: 6 1/8" Glass View Height: 10 Glass View Width: 86 Surround Height: 23 Surround Width: 100
Features

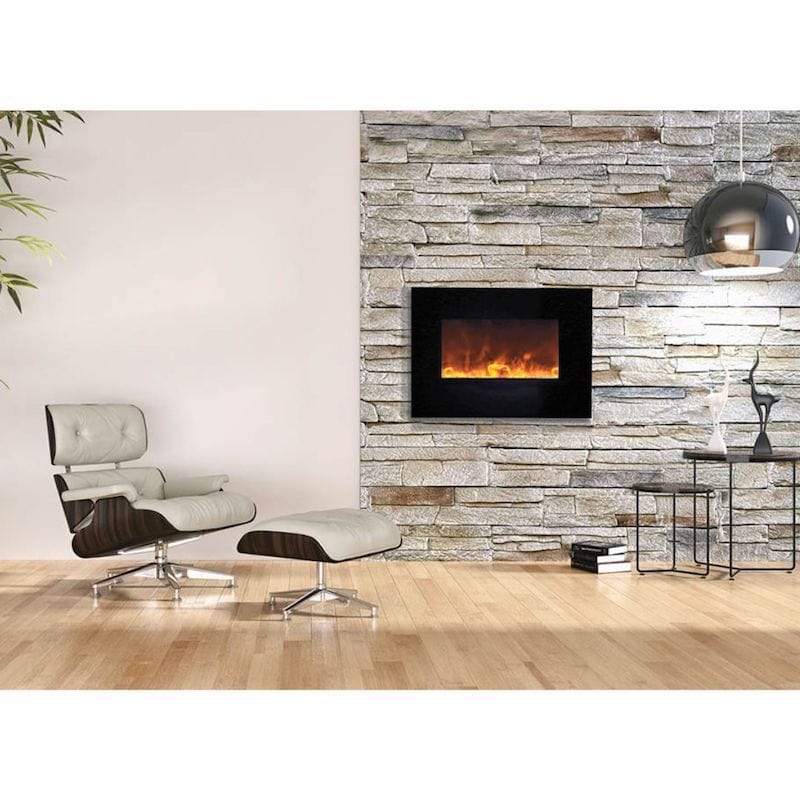

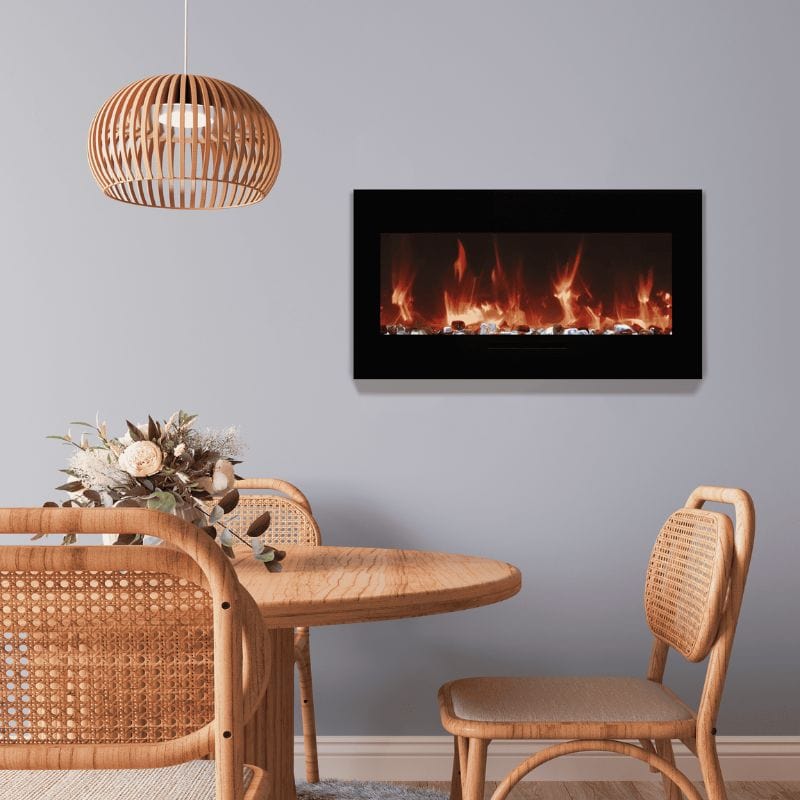

- Units can be built-in or wall-mounted
- Complete with a 2 year limited warranty
- Heat is emitted from a single slot in the face of the surround
- Can be built in flush or wall mounted with included brackets.
- Approx. heating area - 400-500
- Hard-wire ready
- Plug on left side
- Thermostat hard-wire ready
- Electrical hard‐wire ready
- Heat can operate without flame
- Single remote control for flame, surround back-lighting & heater included
- Comes standard with installed log set
-
Flame Presentation. State-of-the-art flame presentation.
-
Vibrant, multi-colored state-of-the-art flame presentation – change from Yellow to Orange to Red with just a click of the remote.

-

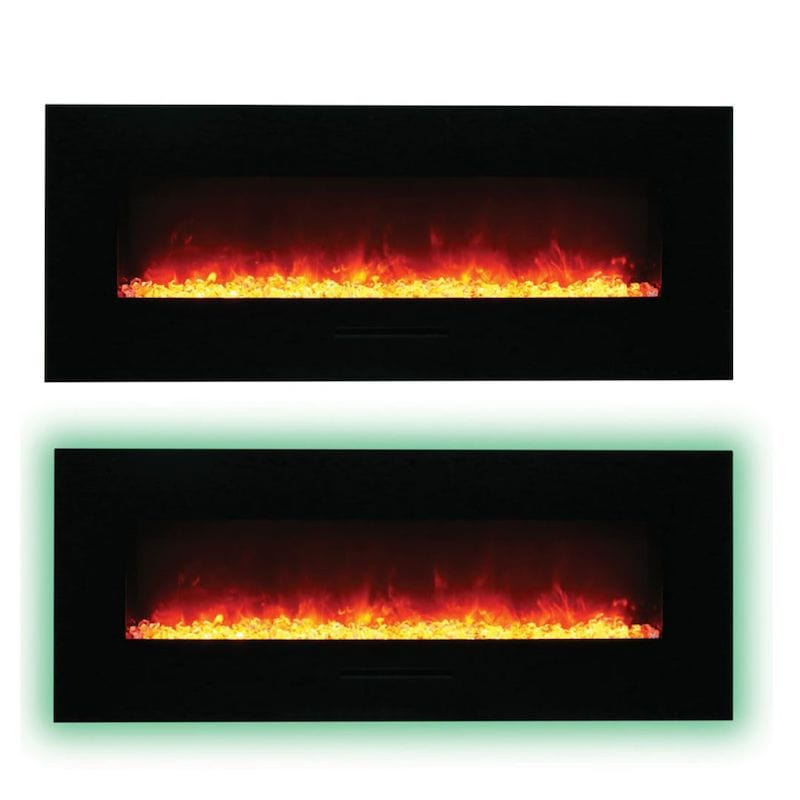

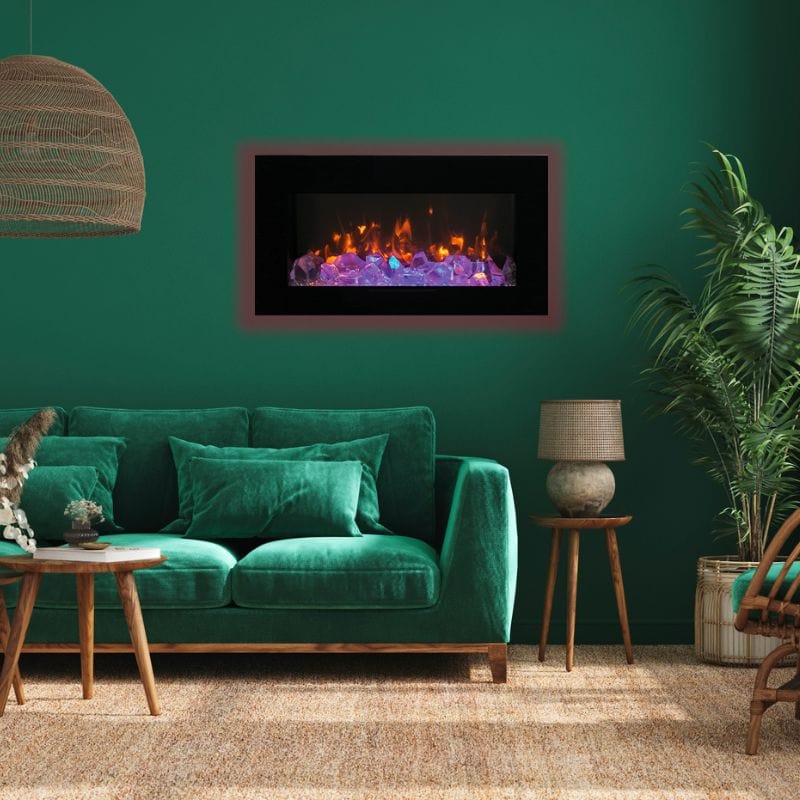

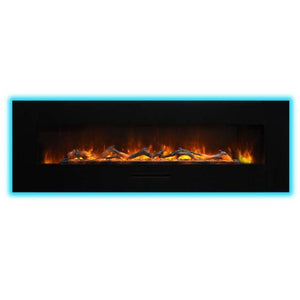

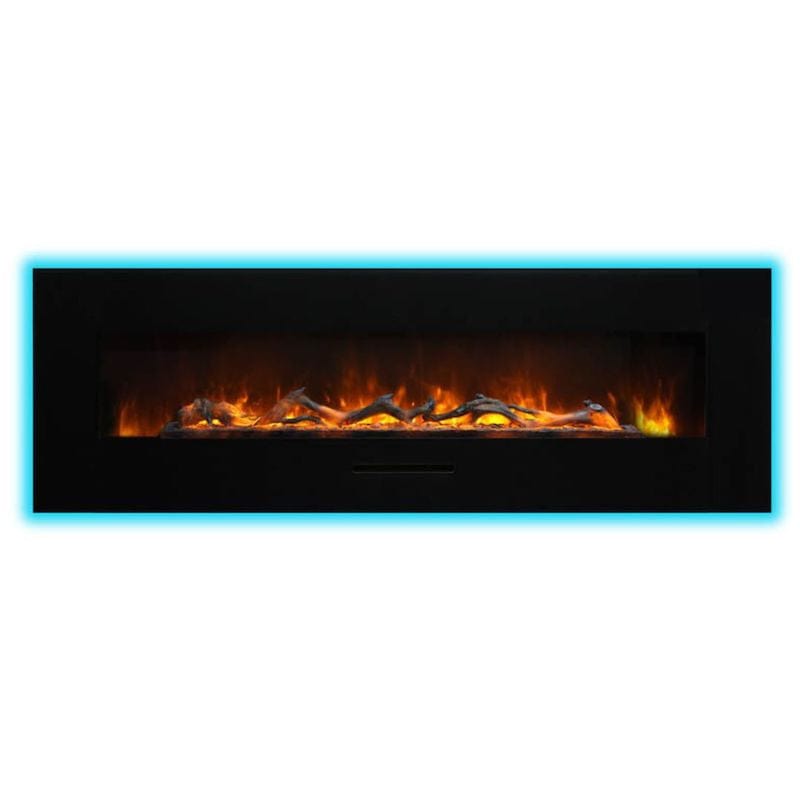

Surround Back Lighting: 13 colors of surround back-lighting

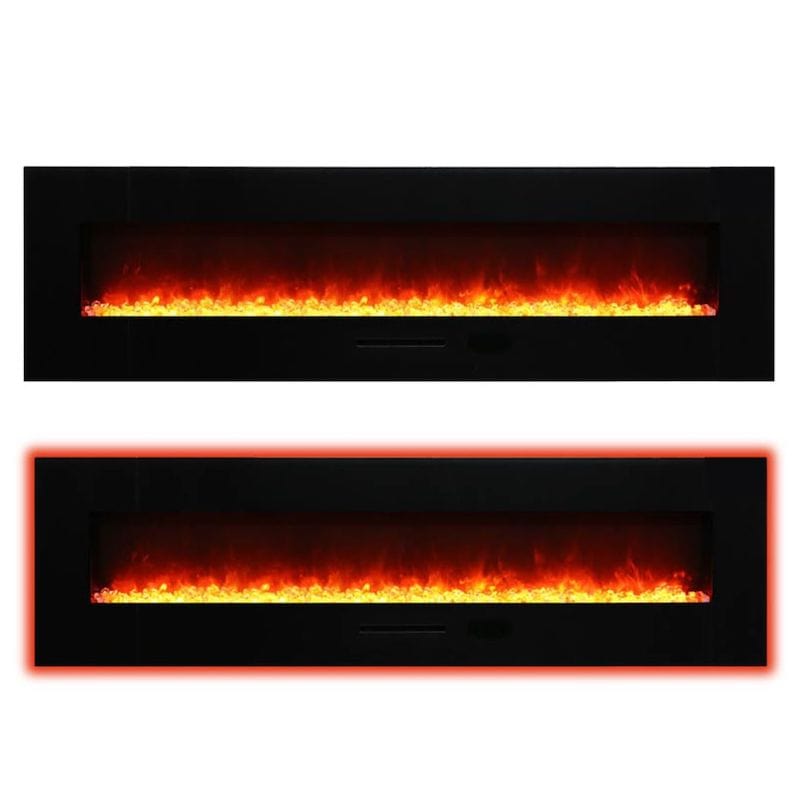

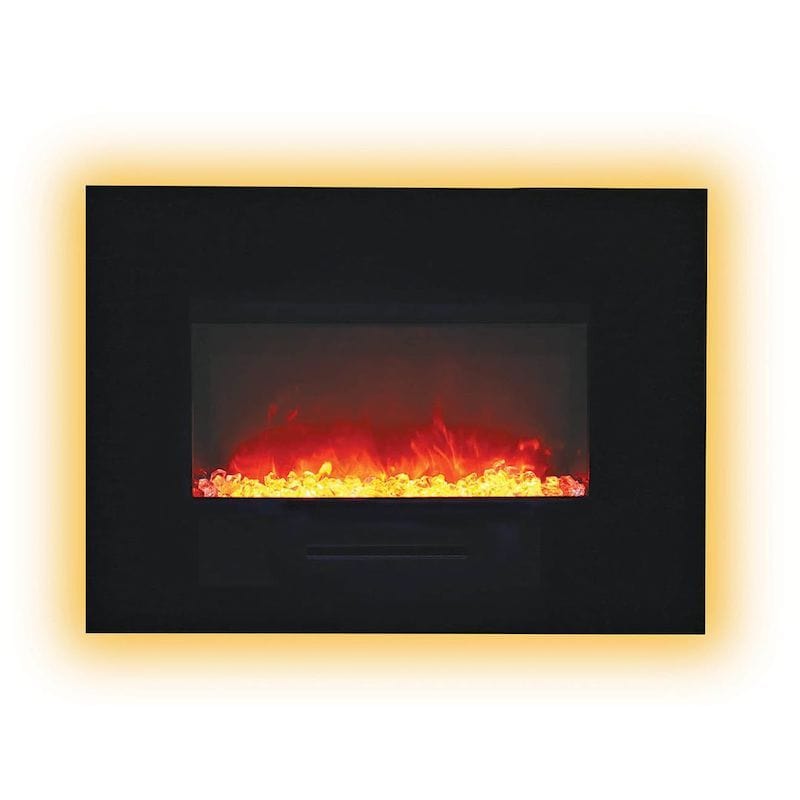

- Ambient Canopy Lighting. The WM-FM Series models come with LED back-lit surround lighting. The back-lighting feature presents only one color at a time, image shown with examples of back-light colors. Choose from a rainbow of colors to cast a decorative glow in your space. Surround back-lighting is located on the back side of the surround.
- IDEAL APPLICATIONS
- Residential spaces
- Commercial spaces
- Restaurants
- New construction or renovations
- Places where construction is not an option (wall mount)
Technical Specs
Volts |
120V |
Amps |
13 |
Watts
|
1500 Watts max |
Heater On |
1500 watts High, 750 watts Low |
Heater Off |
22 Watts |
Rotor Motor |
1 at 5 Watts |
BTU |
4800 |
Included Accessories
✓ Log Set
✓ Remote (may not be exactly as shown)
Optional Accessories
Decorative Fire Glass Media
Our decorative fire glass media is a beautiful addition to your fireplace. Turn your fireplace into a expressive work of art by simply adding our decorative fire glass media. Our fire glass adds a distinctly modern feel to your gas fireplace - mix colors and textures for a unique appearance.
Our decorative fire glass is tempered and will not melt or degrade, some discoloration is normal on glass that is placed directly on the flame.
Always wear protective gloves when handling fire glass media.
One 5lb container of media will cover 1 square foot.
Design Media Log Kit
- DRIFTWOOD 6 Piece Deluxe Media Set (DESIGN-MEDIA-6PCE) | Includes: 6 logs, stones, pebbles, black fire glass, and embers
- RUSTIC 14 Piece Deluxe Media Set (DESIGN-MEDIA-14PCE) | Includes: 14 logs, stones, pebbles, black fire glass, and embers
- BIRCH 15 Piece Deluxe Media Set (DESIGN-MEDIA-BIRCH-15PCE) | Includes: 15 logs, stones, pebbles, black fire glass, and embers
- DRIFTWOOD 15 Piece Deluxe Media Set (DESIGN-MEDIA-15PCE) | Includes: 15 logs, stones, pebbles, black fire glass, and embers

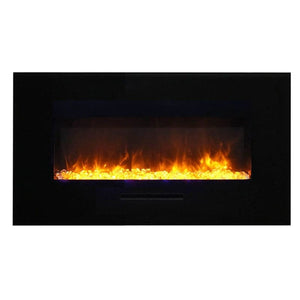

Ice Media
◦ FI-105-Diamond: 1 large, 2 mini clear nuggets, 95 Clear & 10 Blue Diamond Media
◦ FI-106-Diamond: 3 extra large clear glass nuggets
◦ FI-107-Diamond: 6 mini clear glass nuggets
◦ FI-109-Diamond: 3 Large clear nuggets, 95 Clear & 10 Blue Diamond Media, pkg of clear media, and a package of small clear media

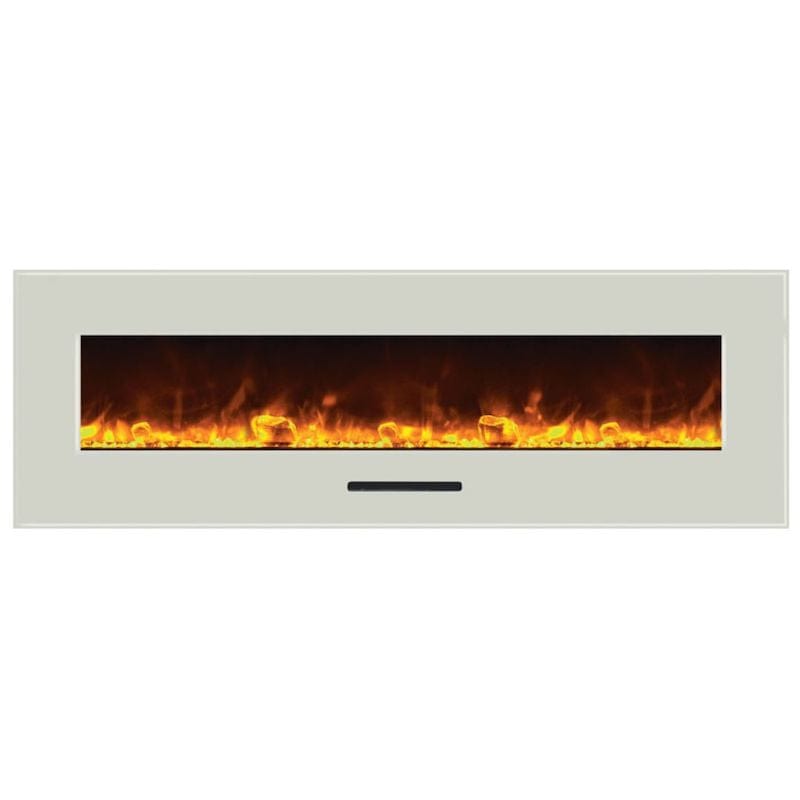

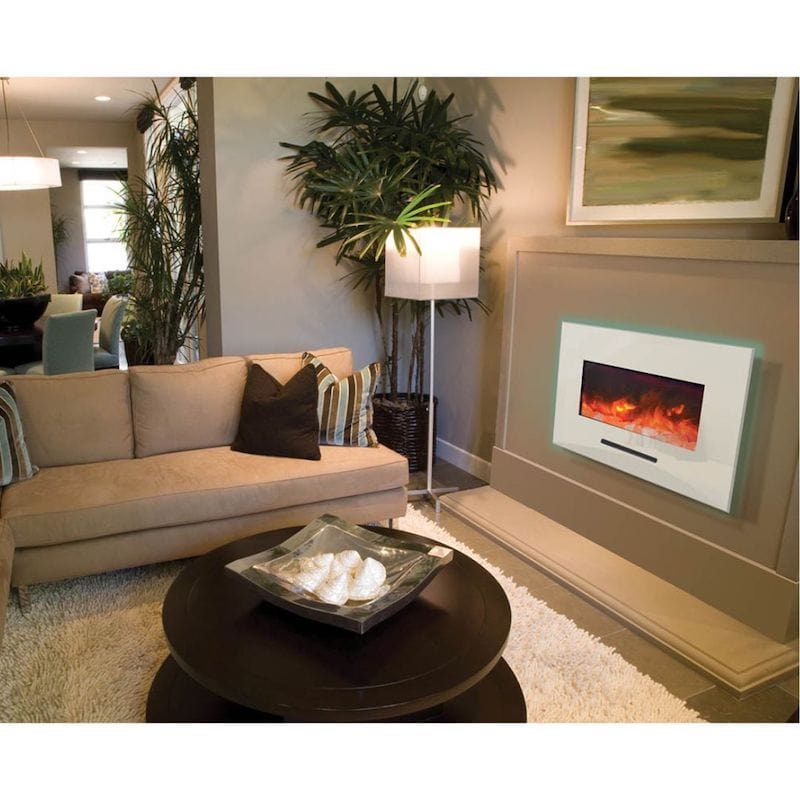

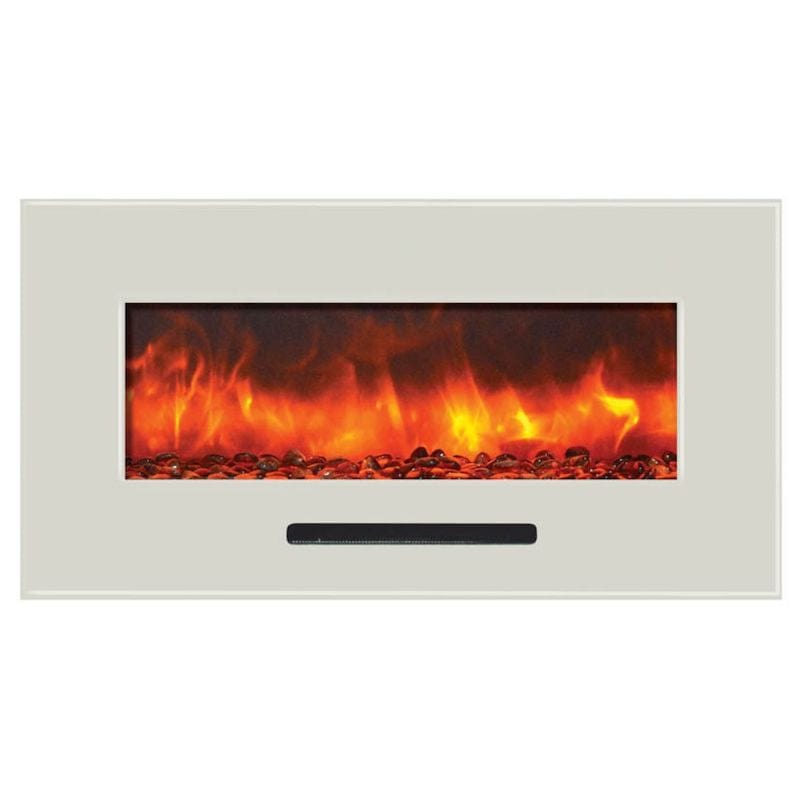

White Glass Surrounds
Brighten up any space with a cool contemporary white glass surround.
WALL MOUNT FLUSH MOUNT BROCHURE
User Manual | Specifications Guide

26-inch:
34-inch:
48-inch:
60-inch:
72-inch:
88-inch:
