Newcomb 36" Direct Vent Linear Fireplace by Sierra Flame

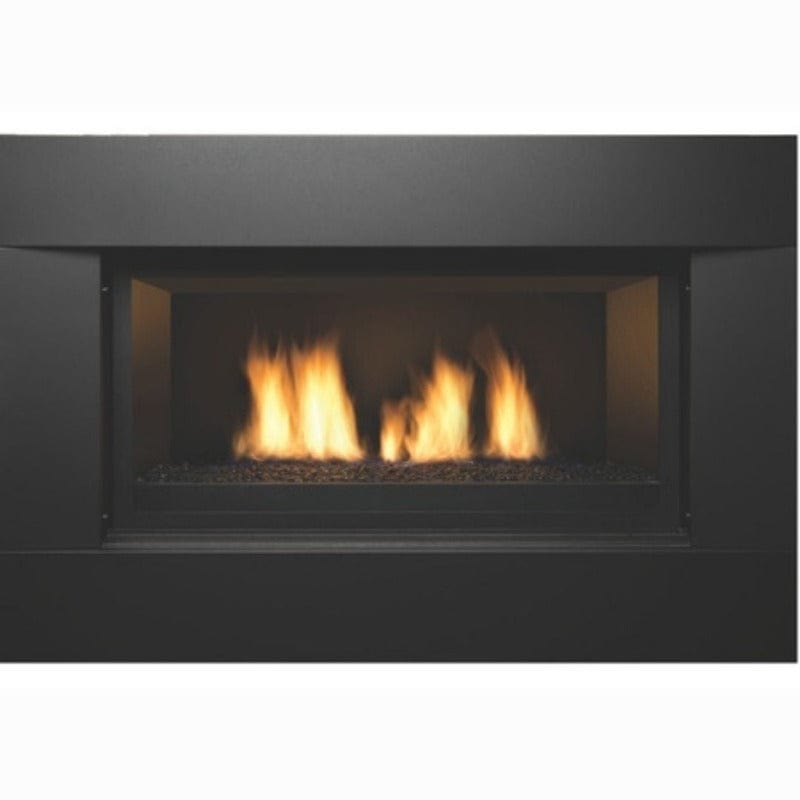

The 36" Newcomb Direct Vent Linear Fireplace

Introducing the Newcomb 36 Direct Vent Linear Gas Fireplace! This gorgeous fireplace is perfect for adding a touch of luxury and sophistication to any home. The contemporary design is sure to make a statement in any room, while the six-stage dual fan control, 7-day programmable thermostat remote, 6-stage dual fan control, and modulating valve allow you to perfectly control the flame.

Choose from two optional surrounds (stainless steel and decorative black) to complete the look. This fireplace comes standard with contemporary black porcelain panels, black reflective glass, and a 3-piece rock set. Comes standard to run on natural gas but is also available for liquid propane use.

For a more upgraded look, the Deluxe System version of this model will get you an upgraded Deluxe Remote Control, Fan Kit, and Modulating Valve in addition to the features below.

Newcomb Fireplace Dimensions

Fireplace Features

•   BTUs

• Hi 21,000 NG | 20,750 LP
• Low 13,000 NG | 13,000 LP

•   Venting **

• 4" Flex Vent on Exhaust Side
• 7" Flex Vent on the Air Intake Side
  **Venting - Any certified 2-ply flex piping can be used. Certified on Duravent, Selkirk, Metal Fab, ICC

•   Ceiling/Mantle Height

• Min from Top of Unit: 48"
• Mantle Height: min 40

• New Builds & Renovations
• Commercial Spaces
• Restaurants
• Condominiums

Included Accessories

Surround Option:

Trim & Barrier Required to complete the fireplace installation.

• Clean Face Black Surround with Safety Barrier
◇ Height: 14.89"
◇ Width: 32.66"

• Stainless Steel Surround with Safety Barrier
◇ Height: 26.67"
◇ Width: 43.44"

• Basic Black Surround with Safety Barrier
◇ Height: 22.62"
◇ Width: 39.71"

• Decorative Black Surround with Screen
◇ Height: 26.67"
◇ Width: 43.34"

Optional Accessories

Fire Glass & Designer Media Kits

• DRIFTWOOD - 6 Piece Design Media Kit:

• Decorative Media Fire Glass

• Our decorative fire glass media is a beautiful addition to your fireplace. Turn your fireplace into a expressive work of art by simply adding our
  decorative fire glass media. Our fire glass adds a distinctly modern feel to your gas fireplace - mix colors and textures for a unique appearance.

  Our decorative fire glass is tempered and will not melt or degrade, some discoloration is normal on glass that is placed directly on the flame.
  Always wear protective gloves when handling fire glass media.

  One 5lb container of media will cover 1 square foot.

Venting

• Termination Kit


• Termination kit for 4" & 7" vent Includes: 1 wall thimble, Horizontal term vent, No flex included.
• * Must supply own flex or purchase 10' 4" x 7" flex length only
• Size: 4"
• Color: Black
• Termination kit for 4 x 7" venting
• Venting Requirements: This unit requires a venting pipe with an inner diameter of 4 Inches.

• Horizontal Flex Term Kit


• SKU: SF94217405
• If 5' of flex is required, use this kit:
• "4”X 7” Horizontal Flex Termination Kit w/ 5’ of Flex, Horizontal Termination, Wall Thimble.
• Includes Coaxial flex lengths, horizontal termination, wall thimble, screw package, sealant

• 4" x 7" Coaxial Flex, 10' Length


• SKU: SF94207410
• To extend SF94217405 an additional 10' purchase this:
• 4” X 7” Coaxial Flex
• 10’ Length Extends SF94217405 – 5’ Flex Kit Couplers Sold Separate – SF942074C

• 4" x 7" Coupler Kit

• SKU: SF942074C
• 4” X 7” Flex Extension Coupler Kit (1-4” & 1-7”)
• Includes 2 couplers, 1 for the inner flex and 1 for the outer flex
• Size: 4"
• Color: Stainless Steel
• One 4" flexible vent pipe coupler
• One 7" flexible vent pipe coupler
• 4" x 7" flexible vent pipe extension coupler kit

• Dura-Hard Vent Pipe Adapter

• SKU: DURA-HARD
• For Hard pipe only installations
• Adapter to use hard pipe off of fireplace
• Transitional adaptor
• Constructed from galvanized steel
• Connects flexible vent pipe to rigid vent pipe
• Size: 4"

• Dura-Flex Vent Pipe Adapter

• SKU: DURA-FLEX
• To convert from flex to hard pipe
• Galvanized adapter to go from flex to hard pipe
• Transitional adaptor
• Safely transitions flexible vent pipe to rigid vent sections
• Size: 3"

Gas Fireplace Warranty
Sierra Flame Gas Brochure
Newcomb Log Placement

The 36" Newcomb Specification Sheet

The 36" Newcomb Installation Manual
