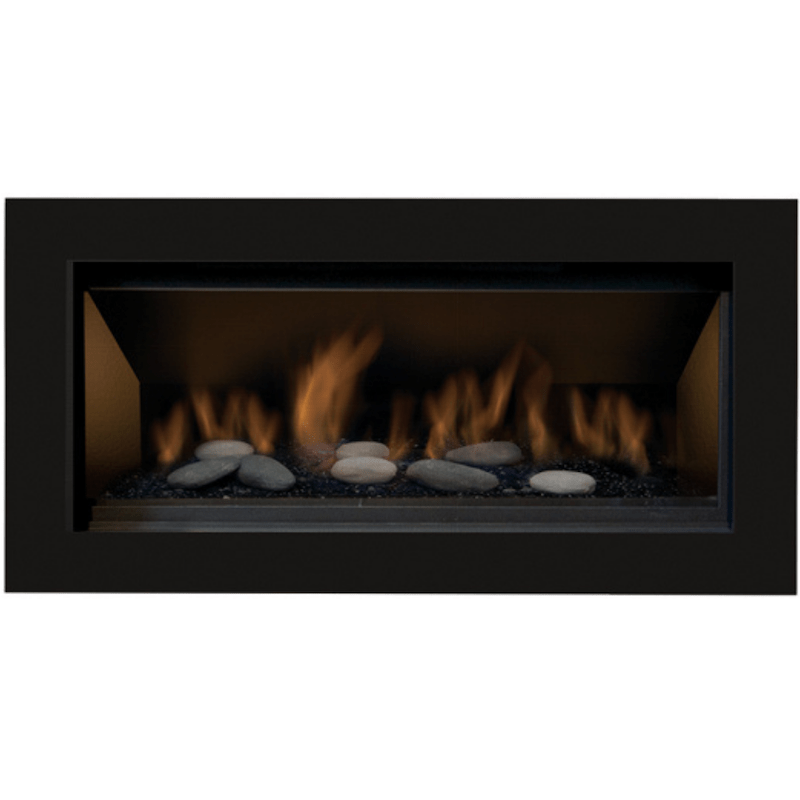

The 45" Lamego Zero Clearance Contemporary Electronic Ignition Gas Fireplace
Designed with the builder in mind, the Lamego gas fireplace is simple to install and easy to service. It is elegant and sleek, yet maintains the beautiful flame you have come to expect.
Lamego is a stylish fireplace built for builders that goes beyond your expectations of what a builder fireplace can be. Explore what the Lamego Modern Linear Gas Fireplace has to offer.
Lamego Fireplace Dimensions
Height: 29.86"
Width: 44 1/4"
Depth: 14 1/2"
Weight: 163.5 lbs
Height: 39"
Width: 48 1/4"
Depth: 16 1/2"
Height: 18 1/2"
Width: 42"
Fireplace Features
• BTUs
- Hi 30,000 NG | 22,000 LP
- Low 27,000 NG | 19,500 LP
• Venting
- 4" Flex Vent on Exhaust Side
- 7" Flex Vent on the Air Intake Side
**Venting - Any certified 2 ply flex piping can be used. Certified on Duravenet, Selkirk, Metal Fab, ICC
• Ceiling/Mantle Height
- Internal Ceiling: 58"
- Mantle Height: min 42"
45” Large Modern Zero Clearance Linear
69.5% Natural Gas Efficiency
30,000 BTU on High / 22,000 BTU on Low
Borosilicate Glass
Glass & Stone Media Included
Heat Activated Variable Speed Fan
Clean Face Surround with Safety Screen
Venting Material & Remote Control NOT included
Comes Standard with a Glass, River Pebble Kit, and a Clean Face Black Surround with Safety Screen
Aluminized Steel Pan Burner
Electronic Ignition
Fan comes included and installed
Ideal Applications
- New Builds & Renovations
- Commercial Spaces
- Restaurants
- Condominiums
Included Accessories
Optional Accessories
Venting
- SKU: TTRK
- 5 piece kit
- This unit requires a venting pipe with an inner diameter of 4 Inch
- Includes: 36 Inch Hard Pipe Length, Storm Collar, High Wind Cap, and Duravent Flashing or Adapter
- Inner Diameter: 4"
- Outer Diameter: 6"
- Clearance to Combustibles: 3"
- SKU: TTRK-S
- 5-piece kit
- For Steep Roofs
- This unit requires a venting pipe with an inner diameter of 4 Inch
- Includes: 36 Inch Hard Pipe Length, Storm Collar, High Wind Cap, and Duravent Flashing or Adapter
- Inner Diameter: 4"
- Outer Diameter: 6"
- Clearance to Combustibles: 3"
Gas Fireplace Warranty
Sierra Flame Gas Brochure
Lamego 45" Specification Guide
Lamego 45" Installation Manual
